17051332005 - HARTING

Description: HM Male Type B19, shielded, PL2, AB Friendly P3

Download 17051332005 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17051332005 - HARTING - PCB symbol
click to zoom
PCB Footprints

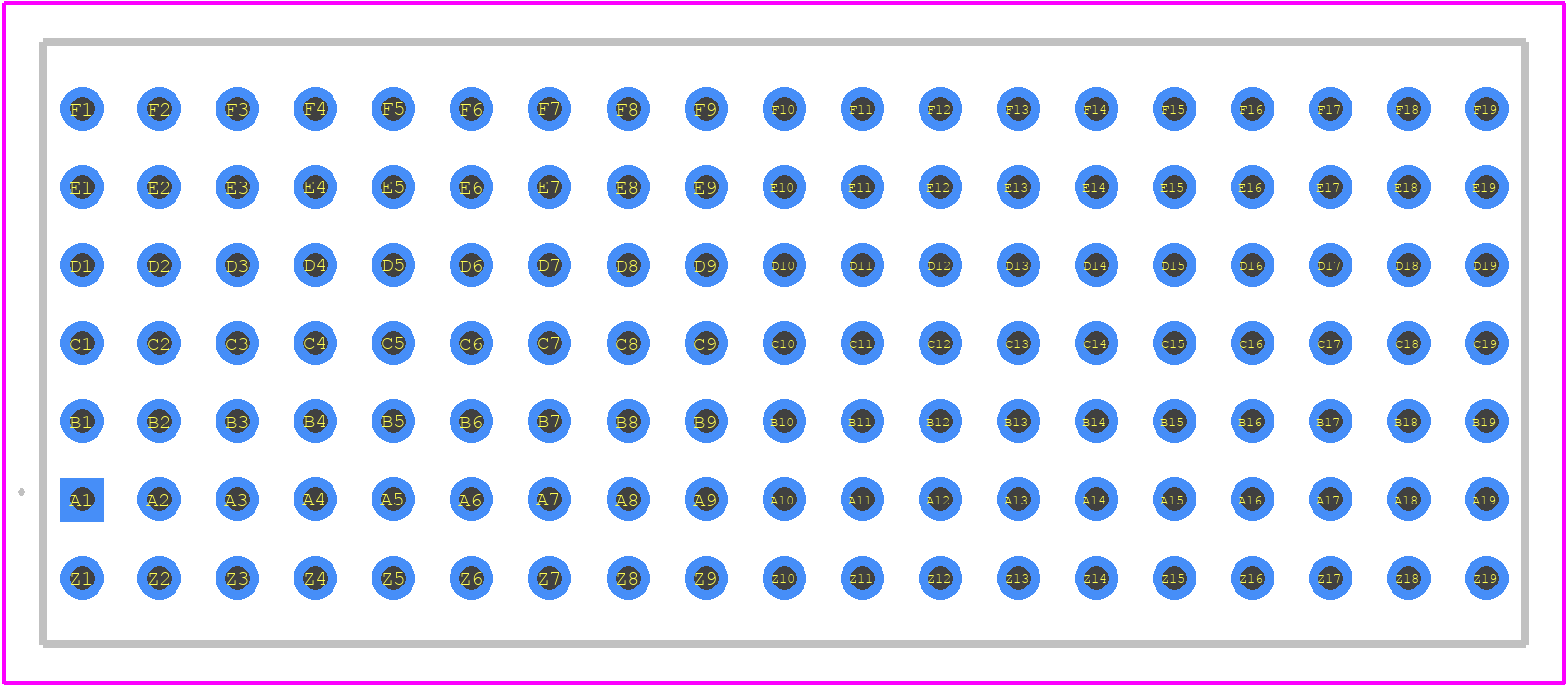

17051332005 - HARTING PCB footprint - Other - Other - 17051332005-2
click to zoom
3D Models
17051332005 - HARTING - 3D model - Other - 17051332005-2
click to zoom

17051332005 Details

  • Manufacturer Part Number:

    17051332005

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    7

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    133

  • UL Flammability Code:

    94V-0

17051332005 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 17051332005 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 17051332005 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g (according to IEC 60068-2-6).
  • Yes, the 17051332005 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to +125°C and humidity resistance up to 95% RH.
  • The 17051332005 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
  • The 17051332005 connector is designed to be compatible with other HARTING connectors and some third-party connectors, but compatibility should be verified before use.
