17051332602 - HARTING

Description: HM Male Type B19, shielded, PL2, pins TRRRRRT

Download 17051332602 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17051332602 - HARTING - PCB symbol
click to zoom
PCB Footprints

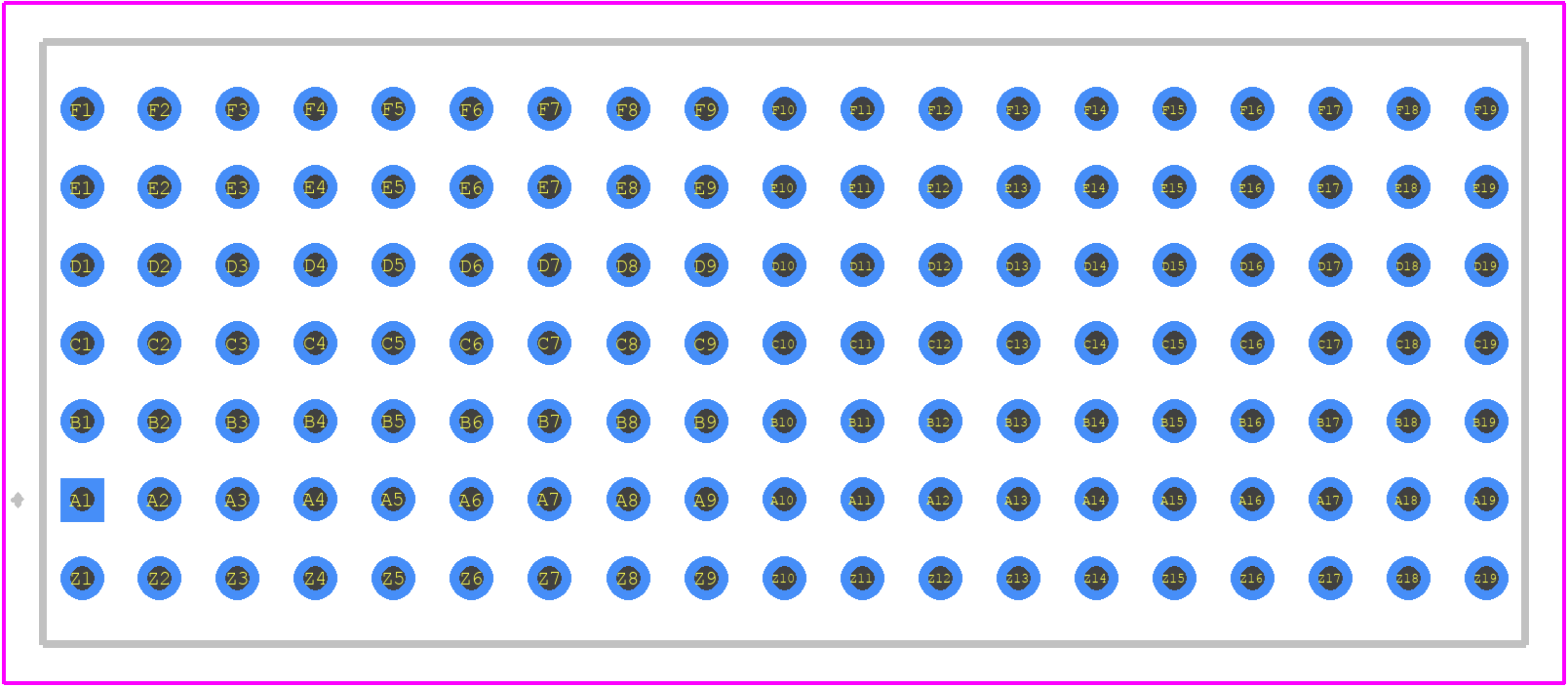

17051332602 - HARTING PCB footprint - Other - Other - 17051332602
click to zoom
3D Models
17051332602 - HARTING - 3D model - Other - 17051332602
click to zoom

17051332602 Details

  • Manufacturer Part Number:

    17051332602

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    38 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    7

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    133

  • UL Flammability Code:

    94V-0

17051332602 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 17051332602 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 17051332602 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 17051332602 connector is designed to withstand high-vibration applications, making it suitable for use in industrial, transportation, and other demanding environments.
  • Yes, the 17051332602 connector is part of the HARTING Han series and is compatible with other Han connectors, allowing for easy integration into existing systems.
  • The 17051332602 connector has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of applications.
