17051332603 - HARTING

Description: HM Male Type B19, shielded, PL2, pins TSSSSST, VME J0

Download 17051332603 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17051332603 - HARTING - PCB symbol
click to zoom

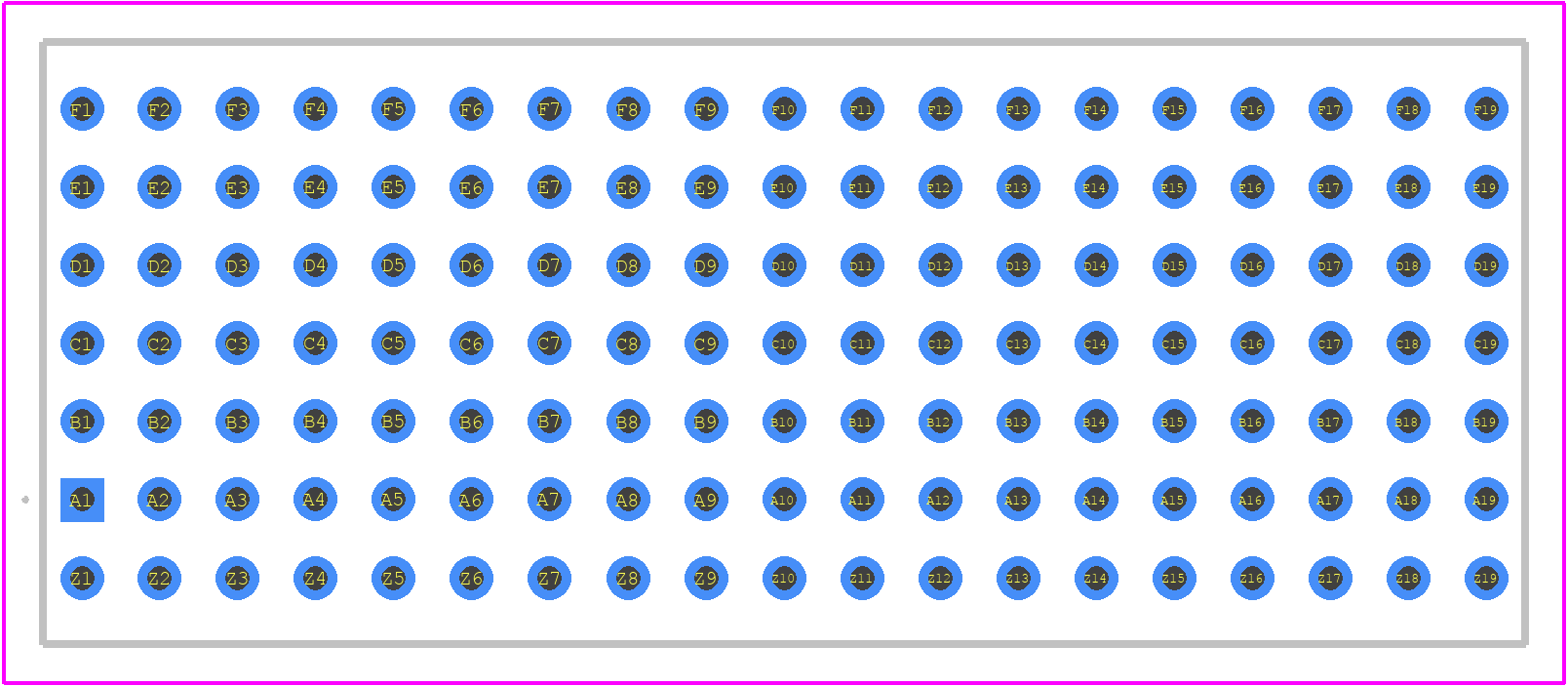

PCB Footprints
17051332603 - HARTING PCB footprint - Other - Other - 17051332603-1
click to zoom
3D Models
17051332603 - HARTING - 3D model - Other - 17051332603-1
click to zoom

17051332603 Details

  • Manufacturer Part Number:

    17051332603

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    7

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    133

  • UL Flammability Code:

    94V-0

17051332603 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 17051332603 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 17051332603 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g according to IEC 61373 Cat. 2.
  • Yes, the 17051332603 connector is designed for outdoor use and can withstand harsh environmental conditions, including exposure to water, dust, and extreme temperatures.
  • The maximum operating temperature of the 17051332603 connector is +125°C, with a minimum operating temperature of -40°C.
  • Yes, the 17051332603 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

17051332603 Overview

Use the download button to access the 17051332603 schematic symbol, PCB footprint, and 3D model.
