17051335201 - HARTING

Description: Conn Hard Metric M 133 POS 2mm Press Fit ST Thru-Hole Straight

Download 17051335201 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17051335201 - HARTING - PCB symbol
click to zoom
PCB Footprints

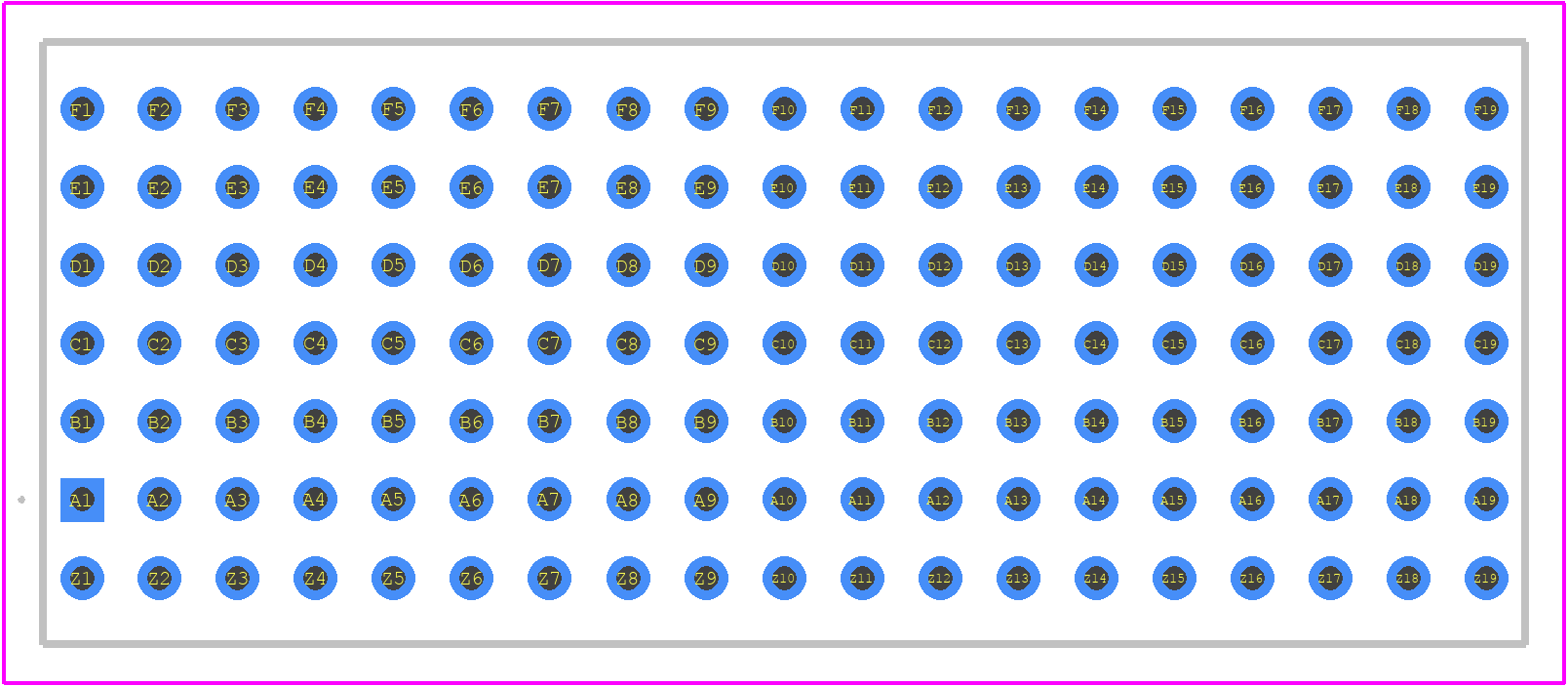

17051335201 - HARTING PCB footprint - Other - Other - 17051335201-4
click to zoom
3D Models
17051335201 - HARTING - 3D model - Other - 17051335201-4
click to zoom

17051335201 Details

  • Manufacturer Part Number:

    17051335201

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (50) OVER NICKEL

  • Contact Finish Termination:

    GOLD (50) OVER NICKEL

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    7

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    133
