PICMG, STANDARD: IEC 61076-4-101, 88 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
7
Option:
GENERAL PURPOSE
Terminal Pitch:
2 mm
Termination Type:
PRESS FIT
Total Number of Contacts:
308
UL Flammability Code:
94V-0
17063081203 Frequently Asked Questions (FAQs)
The recommended torque is typically between 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the HARTING application notes or contact their technical support for specific guidance.
Yes, the 17063081203 connector is designed to withstand vibrations and shocks according to IEC 61373 Cat 2. However, it's crucial to ensure proper mounting and screwing to prevent damage or disconnection.
The 17063081203 connector has a IP67 rating, making it suitable for outdoor and harsh environmental applications. However, it's essential to consider additional protection measures, such as sealing or conformal coating, to ensure reliable operation in extreme conditions.
It's not recommended to use the 17063081203 connector with a mating connector from another manufacturer, as compatibility and performance cannot be guaranteed. HARTING connectors are designed to work with HARTING mating connectors to ensure reliable and safe operation.
The 17063081203 connector has an operating temperature range of -40°C to +125°C. However, it's essential to consider the specific application and potential thermal stresses to ensure reliable operation within the specified temperature range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
17063081203 Overview

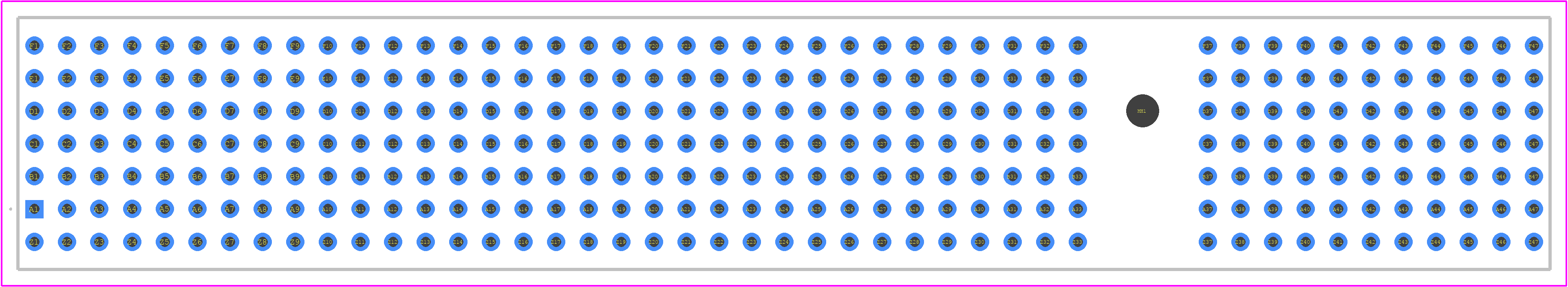

Use the download button to access the 17063081203 schematic symbol, PCB footprint, and 3D model.
