17063082204 - HARTING

Description: har-bus HM

Download 17063082204 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17063082204 - HARTING - PCB symbol
click to zoom
PCB Footprints

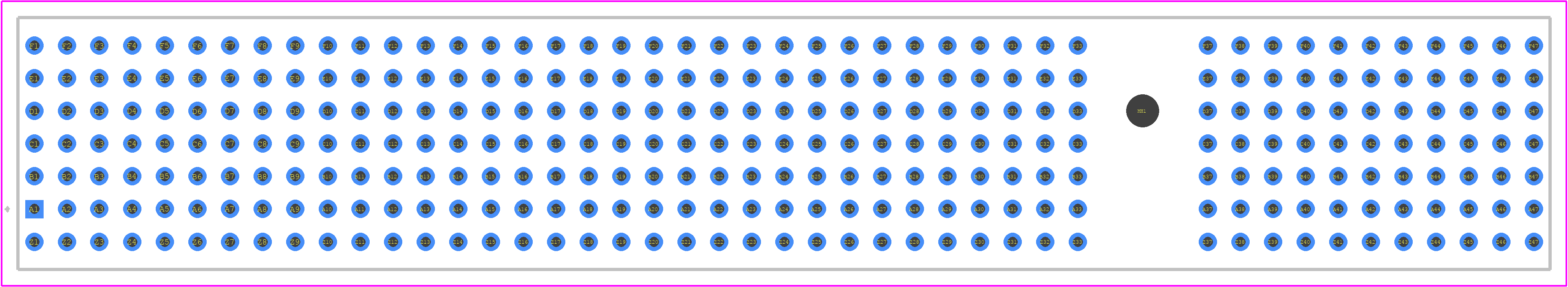

17063082204 - HARTING PCB footprint - Other - Other - 17063082204-1
click to zoom
3D Models
17063082204 - HARTING - 3D model - Other - 17063082204-1
click to zoom

17063082204 Details

  • Manufacturer Part Number:

    17063082204

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    PICMG, STANDARD: IEC 61076-4-101, 88 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    5

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    220

  • UL Flammability Code:

    94V-0

17063082204 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 17063082204 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 17063082204 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g (according to IEC 60068-2-6). However, it's recommended to consult with HARTING's technical support for specific application guidance.
  • The 17063082204 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water. However, it's not recommended for use in harsh chemical environments without proper protection or additional sealing. Consult with HARTING's technical support for specific guidance.
  • The 17063082204 connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of industrial and transportation applications.
  • The 17063082204 connector is part of the HARTING Han series, which is a widely used and compatible connector family. However, it's recommended to consult with HARTING's technical support to ensure compatibility with specific connector series and applications.
