1708404 - Phoenix Contact

Description: IPC 5/ 4-G-7,62 - PCB headers, nominal cross section: 6 mm<sup>2</sup>, color: green, nominal current: 32 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Socket, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: IPC 5/..-G, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 5 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 5, Pin connector pattern alignment: St

Download 1708404 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1708404 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

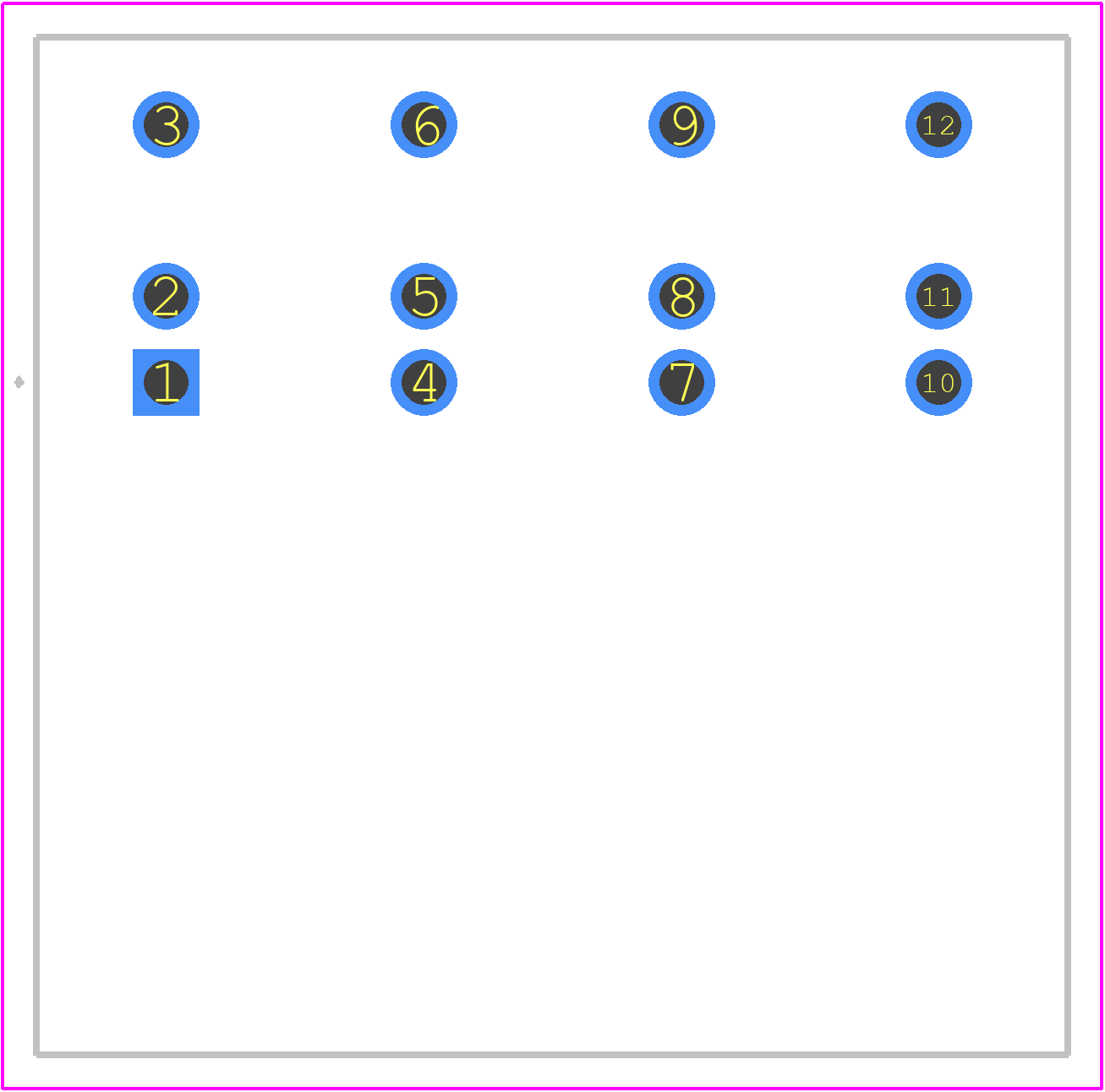

1708404 - Phoenix Contact PCB footprint - Other - Other - 1708404
click to zoom
3D Models
1708404 - Phoenix Contact - 3D model - Other - 1708404
click to zoom

1708404 Details

  • Manufacturer Part Number:

    1708404

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.78

  • Additional Feature:

    STANDARD: 94V-0, POLYAMIDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    41 A

  • Rated Voltage:

    630 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1708404 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
  • Yes, the 1708404 connector is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to follow the manufacturer's guidelines and perform additional testing to ensure reliability.
  • The 1708404 connector has a IP67 rating, making it suitable for outdoor use and harsh environments, but it's essential to follow the manufacturer's guidelines for installation, maintenance, and environmental considerations.
  • Yes, the 1708404 connector is designed to be compatible with other Phoenix Contact products, and it can also be used with third-party components, but it's recommended to verify compatibility and follow the manufacturer's guidelines.
  • The maximum operating temperature for the 1708404 connector is 125°C, but it's essential to consider the specific application and environmental conditions to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1708404 Overview

Use the download button to access the 1708404 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17084, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
