1708996 - Phoenix Contact

Description: IPCV 5/ 8-GF-7,62 - PCB headers, nominal cross section: 6 mm<sup>2</sup>, color: green, nominal current: 32 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Socket, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: IPCV 5/..-GF, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 5 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 5, Pin connector pattern alignment

Download 1708996 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1708996 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

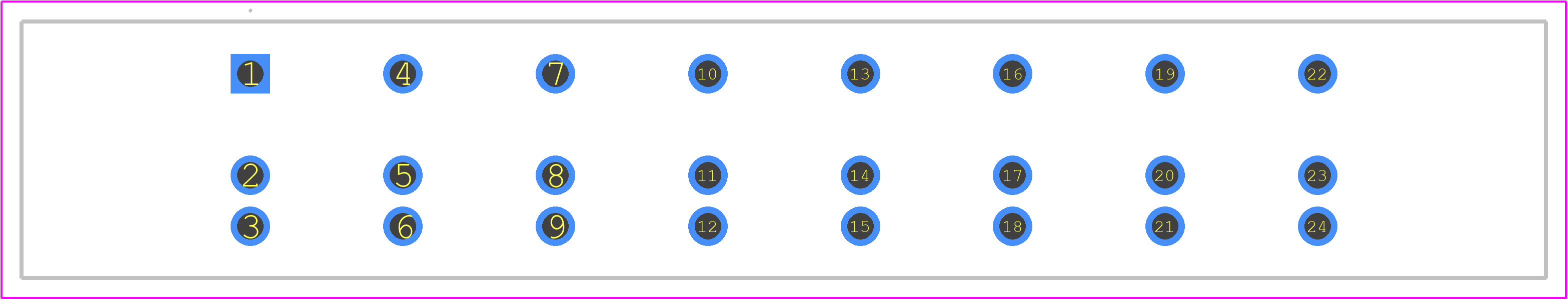

1708996 - Phoenix Contact PCB footprint - Other - Other - 1708996
click to zoom
3D Models
1708996 - Phoenix Contact - 3D model - Other - 1708996
click to zoom

1708996 Details

  • Manufacturer Part Number:

    1708996

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.65

  • Additional Feature:

    PA, UL 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    41 A

  • Rated Voltage:

    630 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1708996 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material. It's essential to consult the Phoenix Contact manual or contact their support team for specific guidance.
  • Yes, the 1708996 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to maintain the connector's integrity.
  • The 1708996 connector has a IP67 rating, making it suitable for outdoor use and exposure to dust and water. However, it's essential to follow proper installation and sealing guidelines to maintain the IP67 rating.
  • While the datasheet specifies a particular wire gauge, it's possible to use a different gauge with some limitations. Consult Phoenix Contact's support team or a qualified engineer to determine the feasibility and potential modifications required.
  • The 1708996 connector is rated for operation in temperatures ranging from -40°C to 100°C. However, it's essential to consider the specific application and potential temperature extremes to ensure the connector's reliability.
