1709694 - Phoenix Contact

Description: MKDS 10 HV/ 3-ZB-10,16 - Printed circuit board terminal, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm<sup>2</sup>, number of potentials: 3, number of rows: 1, number of positions per row: 3, product range: MKDS 10 HV, pitch: 10.16 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Zigzag pinning W, Solder pin [P]: 5 mm, number of solder pins

Download 1709694 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1709694 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

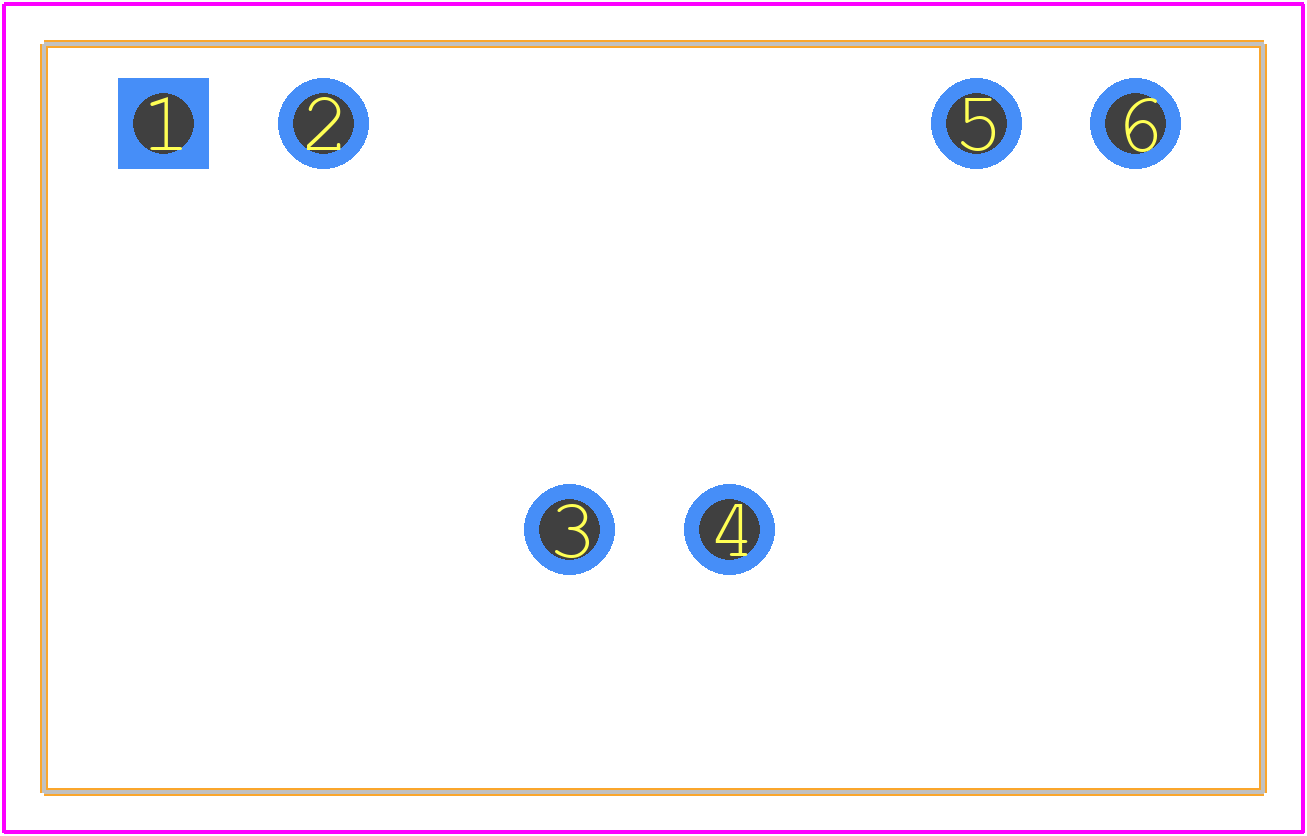

1709694 - Phoenix Contact PCB footprint - Other - Other - 1709694-3
click to zoom
3D Models
1709694 - Phoenix Contact - 3D model - Other - 1709694-3
click to zoom

1709694 Details

  • Manufacturer Part Number:

    1709694

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    PA, UL 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    76 A

  • Rated Voltage:

    1000 V

  • Safety Approval:

    CB; CCA; CUL; GOST; SEV; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    10 mm2

  • Wire Gauge:

    6 AWG

1709694 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 1709694 connector is designed to withstand vibrations up to 10g according to IEC 61373, making it suitable for high-vibration applications.
  • Yes, the 1709694 connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
  • The 1709694 connector is rated for operation in temperatures ranging from -40°C to 125°C, making it suitable for a wide range of applications.
  • Yes, the 1709694 connector is designed to meet the requirements of IP67 and IP69K, making it suitable for outdoor and harsh environment applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1709694 Overview

Use the download button to access the 1709694 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17096, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
