171-015-213R011 - NorComp

Description: D-Sub Standard Connectors Female D-Sub 15 Position Straight Dip Solder Rows 2

Download 171-015-213R011 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
171-015-213R011 - NorComp - PCB symbol
click to zoom
PCB Footprints

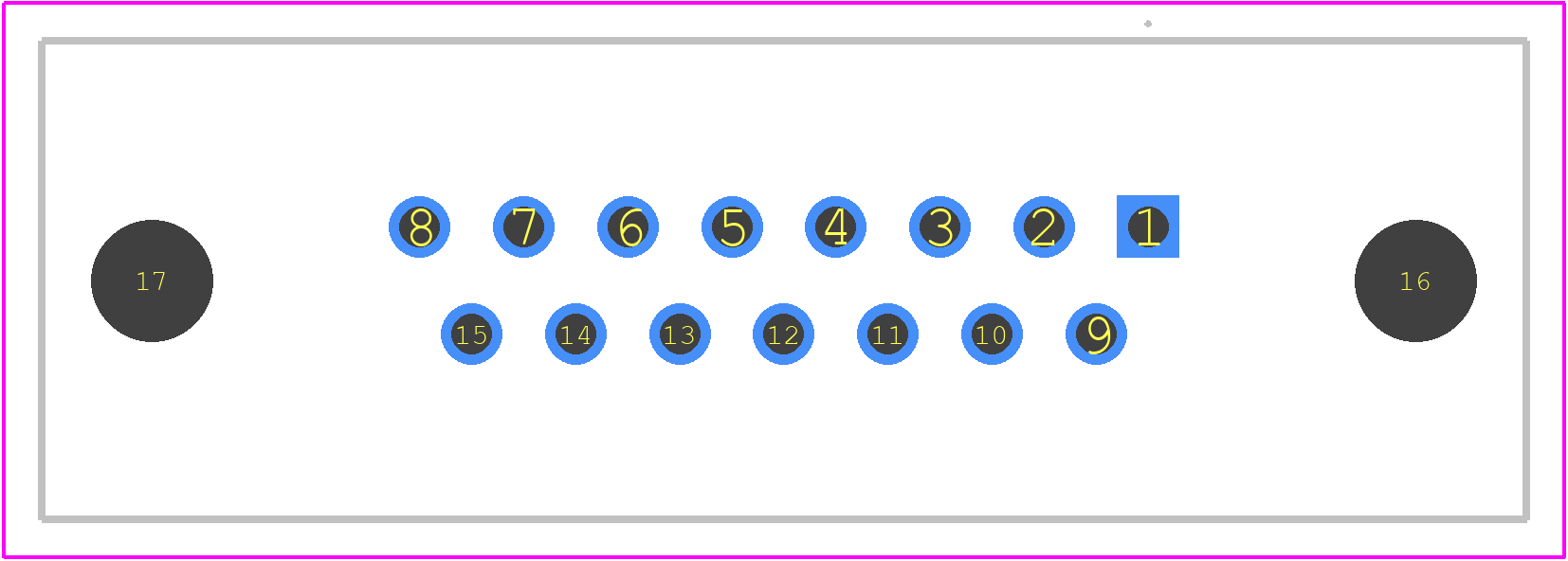

171-015-213R011 - NorComp PCB footprint - Other - Other - 171-015-213R011-3
click to zoom
3D Models
171-015-213R011 - NorComp - 3D model - Other - 171-015-213R011-3
click to zoom

171-015-213R011 Details

  • Manufacturer Part Number:

    171-015-213R011

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    8.18

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE9T

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    2/A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

171-015-213R011 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 171-015-213R011 is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments.
  • Yes, the 171-015-213R011 has a IP67 rating, making it suitable for outdoor use and able to withstand exposure to dust and water.
  • The operating temperature range for the 171-015-213R011 is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • While the datasheet specifies AWG 24-20 wire sizes, the connector can accommodate other wire sizes with the use of adapters or by consulting with NorComp's technical support team.
