1710880018 - Molex

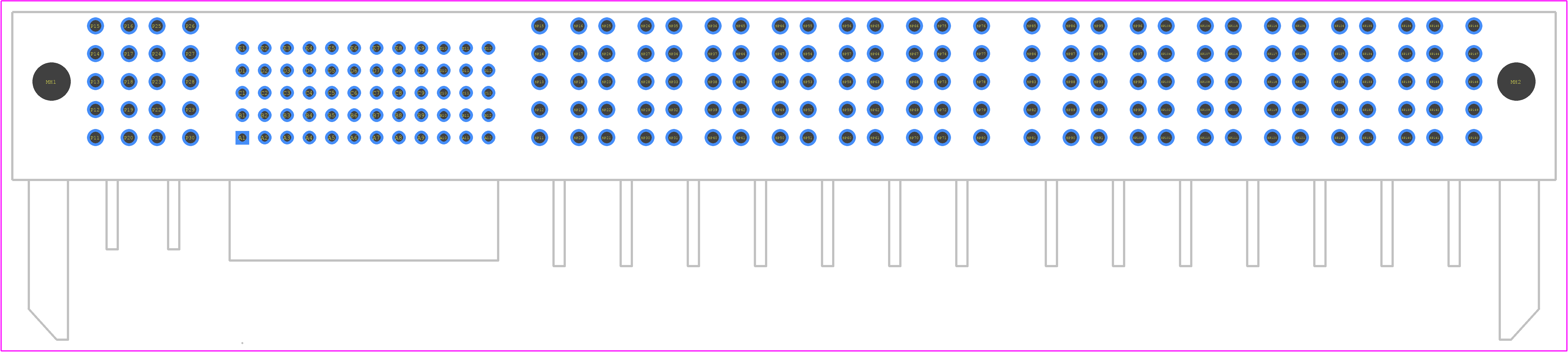

1710880018 Details

• Manufacturer Part Number:

  1710880018

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Indonesia, Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Molex

• YTEOL:

  8

• Board Mounting Option:

  HOLE 0.134

• Body Breadth:

  0.394 inch

• Body Depth:

  0.59 inch

• Body Length:

  5.431 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  BOARD CONNECTOR

• Contact Arrangement:

  S60P16

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  MALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  30 mΩ

• Contact Style:

  BLADE PIN-SKT

• Dielectric Withstanding Voltage:

  1500VDC V

• Durability:

  200 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  0.735 N

• Insulation Resistance:

  10000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.079 inch

• Mating Contact Row Spacing:

  0.079 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  YES

• Mounting Option 1:

  GUIDE PIN

• Mounting Option 2:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  5

• Number of Rows Loaded:

  5

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2 mm

• Plating Thickness:

  30u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Power):

  60 A

• Rated Current (Signal):

  2.5 A

• Reference Standard:

  CSA; UL

• Terminal Length:

  0.112 inch

• Terminal Pitch:

  2 mm

• Termination Type:

  PRESS FIT

• Total Number of Contacts:

  76

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.294 N
