17122002201 - HARTING

Description: HM Male Type E, unshielded, PL2, pins AAAAAAAA

Download 17122002201 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17122002201 - HARTING - PCB symbol
click to zoom
PCB Footprints

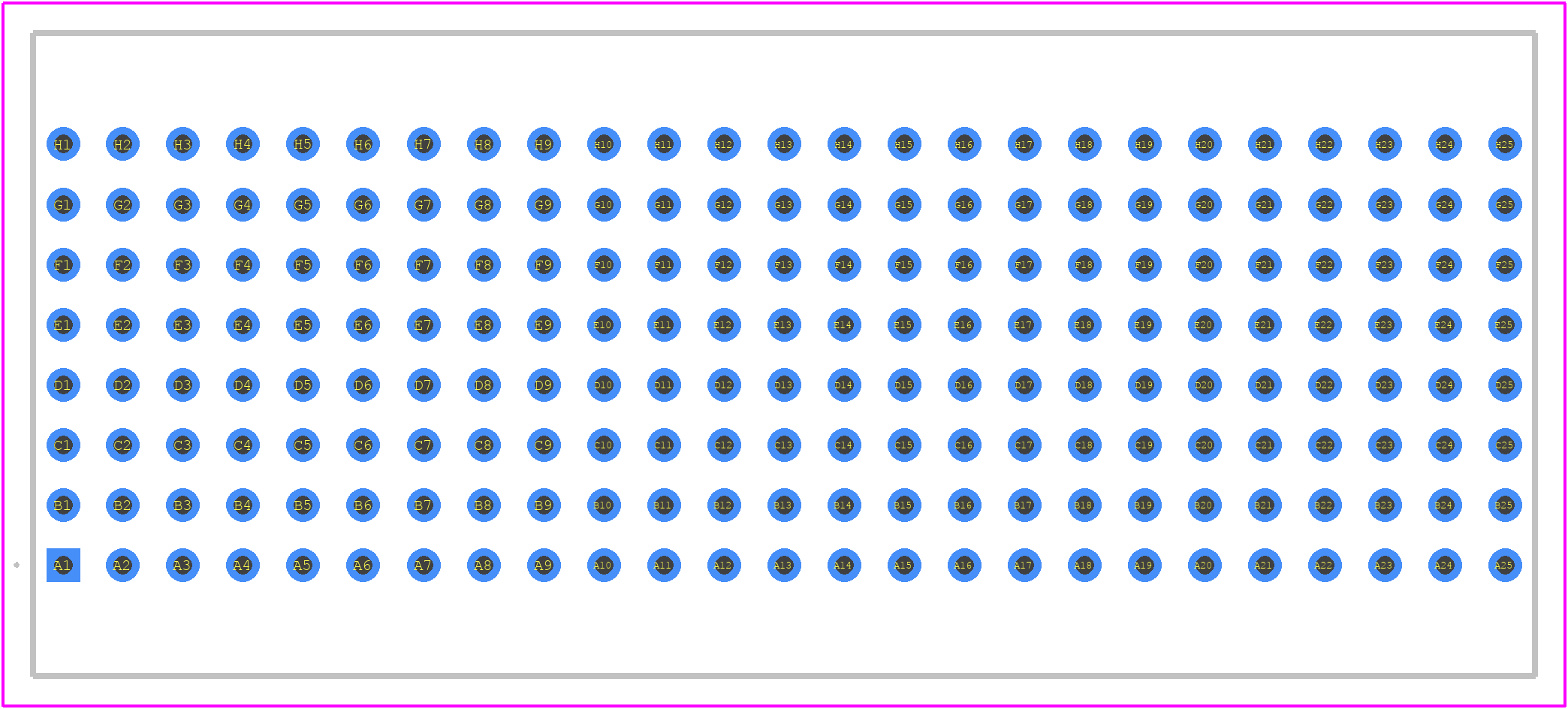

17122002201 - HARTING PCB footprint - Other - Other - 17122002201-3
click to zoom
3D Models
17122002201 - HARTING - 3D model - Other - 17122002201-3
click to zoom

17122002201 Details

  • Manufacturer Part Number:

    17122002201

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: IEC 61076-4-101

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    8

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    200

  • UL Flammability Code:

    94V-0

17122002201 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 17122002201 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 17122002201 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g (according to IEC 60068-2-6). However, it's recommended to consult with HARTING's technical support for specific application guidance.
  • The 17122002201 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and humidity levels (up to 95% RH). However, it's essential to consult with HARTING's technical support to ensure the connector meets the specific environmental requirements of your application.
  • The 17122002201 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions. However, it's recommended to consult with HARTING's technical support for specific guidance on mating cycle life.
  • The 17122002201 connector is designed to be compatible with other HARTING connectors within the same product family. However, compatibility with third-party connectors should be verified through testing and consultation with HARTING's technical support.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

17122002201 Overview

Use the download button to access the 17122002201 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17122, or try a keyword search, such as Headers and Edge Type Connectors
