17122502201 - HARTING

Description: HM Male Type E, shielded, PL2, pins CAAAAAAAAC

Download 17122502201 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17122502201 - HARTING - PCB symbol
click to zoom

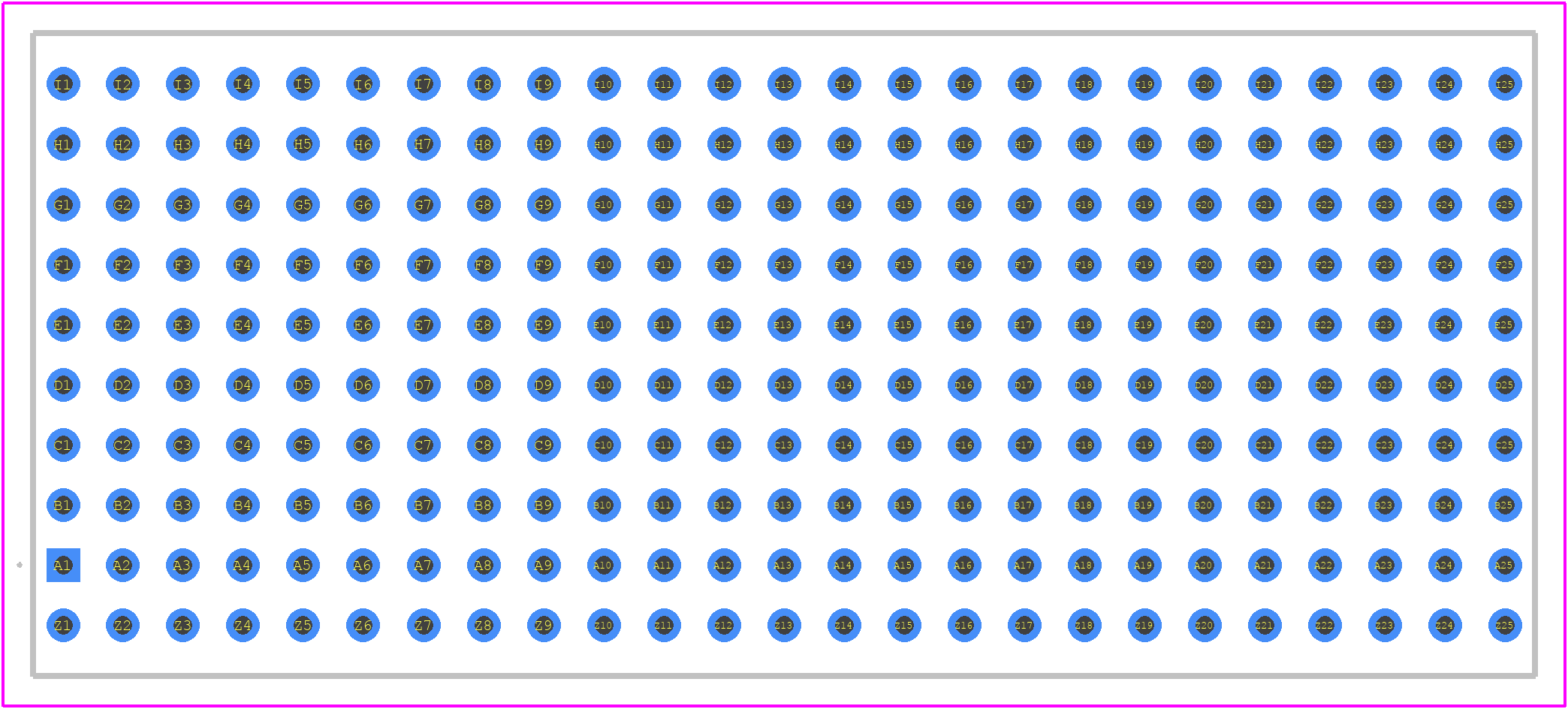

PCB Footprints
17122502201 - HARTING PCB footprint - Other - Other - 17122502201-2
click to zoom
3D Models
17122502201 - HARTING - 3D model - Other - 17122502201-2
click to zoom

17122502201 Details

  • Manufacturer Part Number:

    17122502201

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    50 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    10

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    250

  • UL Flammability Code:

    94V-0

17122502201 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 17122502201 connector is -40°C to 125°C, making it suitable for use in harsh environments.
  • Yes, the 17122502201 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • The 17122502201 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 17122502201 connector is designed to meet the requirements of the ATEX and IECEx standards for use in explosive atmospheres, making it suitable for use in hazardous environments.
  • The 17122502201 connector has a mating cycle life of at least 500 cycles, making it suitable for use in applications where frequent mating and unmating is required.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

17122502201 Overview

Use the download button to access the 17122502201 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17122, or try a keyword search, such as Headers and Edge Type Connectors
