Part Image

17131271201 - HARTING

Description: HM Male Type AB19, shielded, PL1, pins CAAAAAC

Download 17131271201 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17131271201 - HARTING - PCB symbol
click to zoom

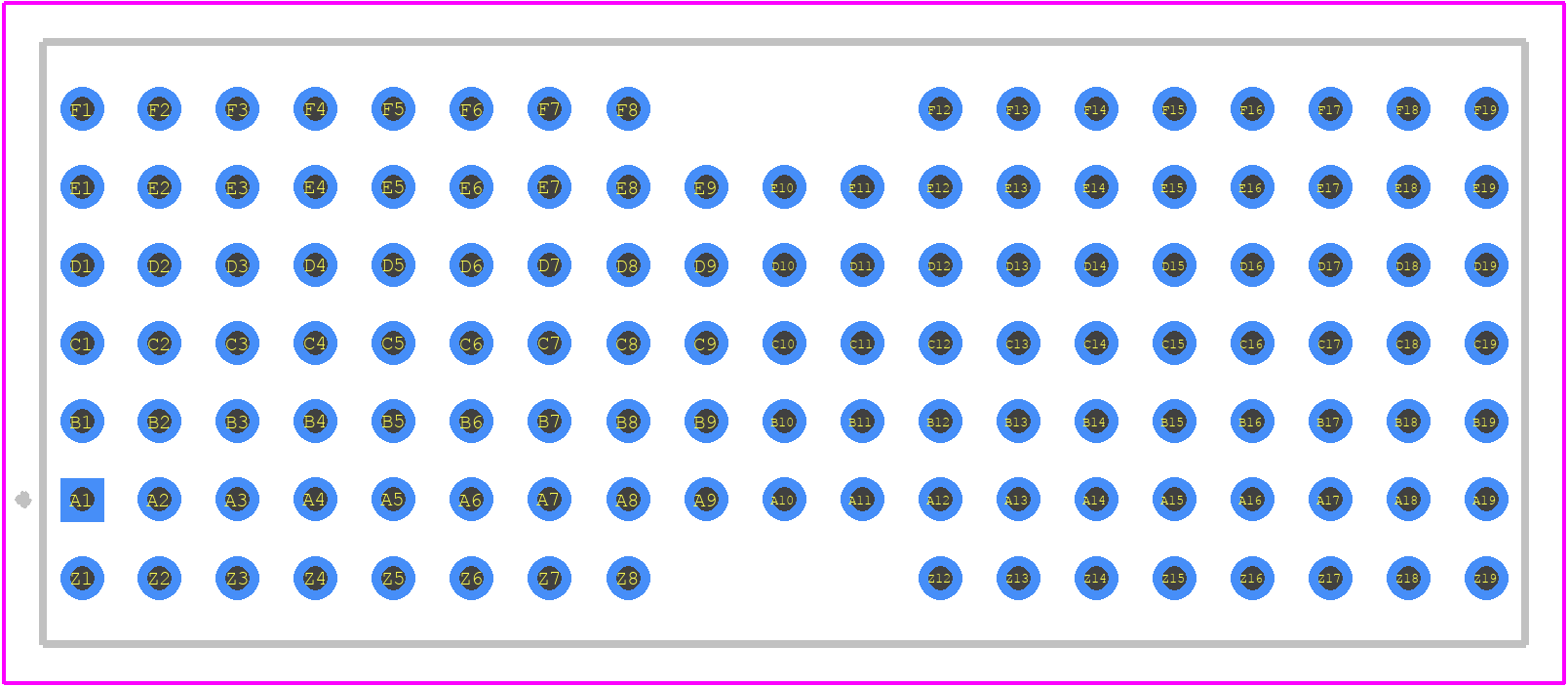

PCB Footprints
17131271201 - HARTING PCB footprint - Other - Other - 17131271201
click to zoom
3D Models
17131271201 - HARTING - 3D model - Other - 17131271201
click to zoom

17131271201 Details

  • Manufacturer Part Number:

    17131271201

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    32 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    7

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    127

  • UL Flammability Code:

    94V-0

17131271201 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 17131271201 connector is -40°C to 125°C, as per the IEC 61984 standard.
  • Yes, the 17131271201 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10g acceleration, as per the IEC 61984 standard.
  • Yes, the 17131271201 connector is designed to be resistant to harsh environments, including high humidity and exposure to chemicals. It meets the IP67 rating for ingress protection and is also resistant to corrosion.
  • The 17131271201 connector has a mating cycle life of at least 500 cycles, as per the IEC 61984 standard.
  • Yes, the 17131271201 connector is suitable for power applications, with a current rating of up to 10A per contact and a voltage rating of up to 250V.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

17131271201 Overview

Use the download button to access the 17131271201 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17131, or try a keyword search, such as Headers and Edge Type Connectors
