171315-1807 - Molex

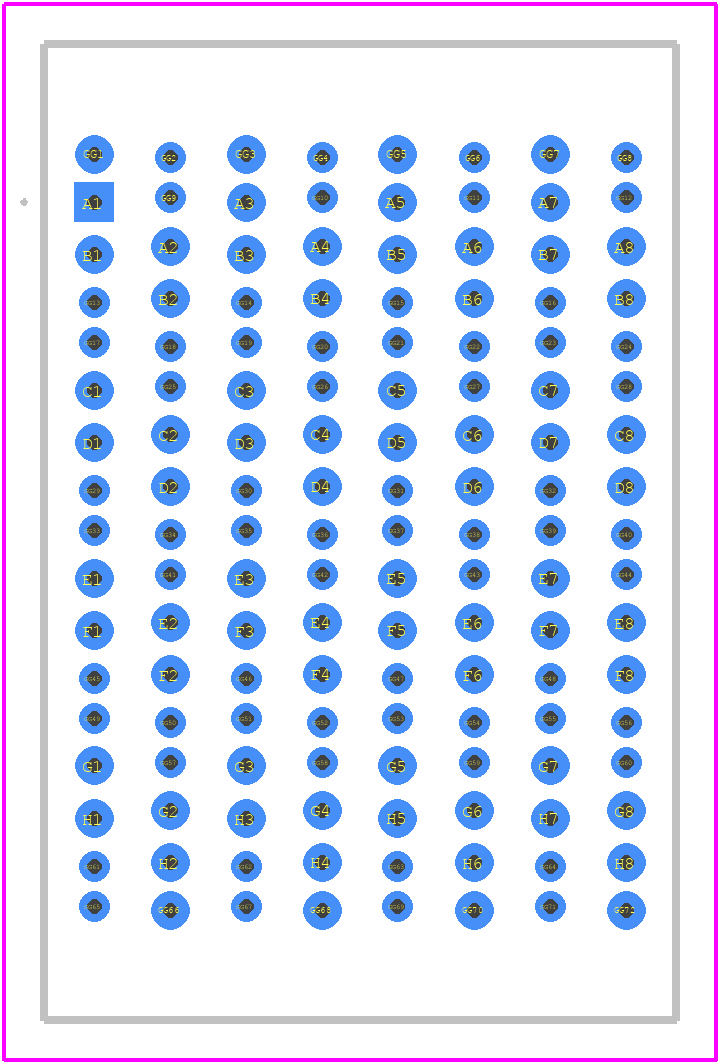

171315-1807 Details

• Manufacturer Part Number:

  171315-1807

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  LOW HALOGEN, ROHS AND REACH COMPLIANT

• Country Of Origin:

  Mainland China, Singapore, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Molex

• YTEOL:

  7.75

• Additional Feature:

  IMPEL,SHIELDED

• Body Breadth:

  0.961 inch

• Body Depth:

  0.47 inch

• Body Length:

  0.862 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  10 mΩ

• Contact Style:

  BLADE PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  500VAC V

• Durability:

  200 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  .5838 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYETHYLENE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.075 inch

• Mating Information:

  171320-1038

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  17

• Number of Rows Loaded:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Plating Thickness:

  30u inch

• Polarization Key:

  2WALL SHROUD

• Rated Current (Signal):

  0.75 A

• Reference Standard:

  UL

• Terminal Length:

  0.051 inch

• Terminal Pitch:

  1.9 mm

• Termination Type:

  PRESS FIT

• Total Number of Contacts:

  64

• Withdrawl Force-Min:

  .14734 N
