171366-1 - TE Connectivity

Description: Pin Header, Wire-to-Board, 2 Rows, 17 Contacts, Through Hole, Multi-Interlock Mark II

Download 171366-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
171366-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

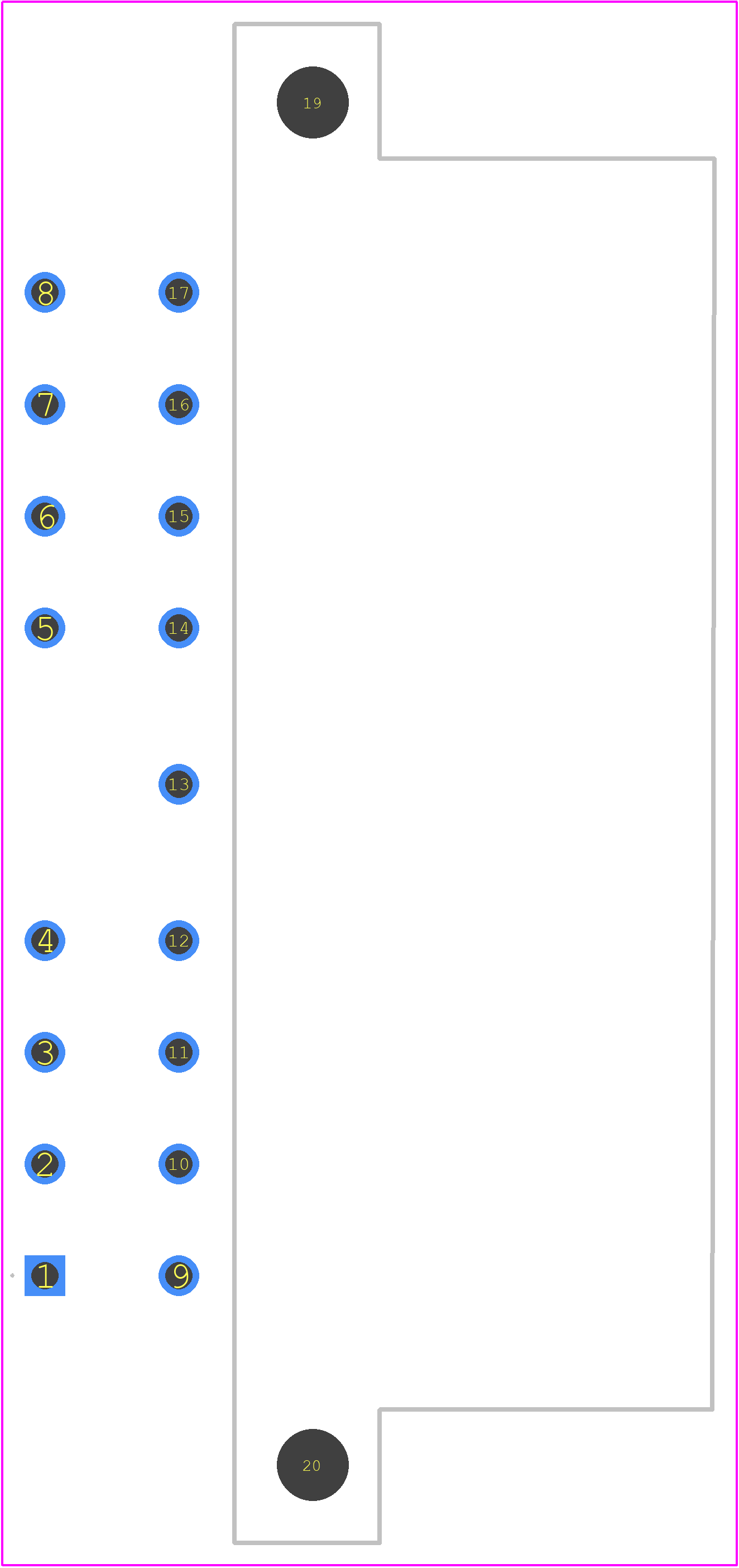

171366-1 - TE Connectivity PCB footprint - Other - Other - 171366-1-4
click to zoom
3D Models
171366-1 - TE Connectivity - 3D model - Other - 171366-1-4
click to zoom

171366-1 Details

  • Manufacturer Part Number:

    171366-1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    AMP

  • Body Breadth:

    0.657 inch

  • Body Depth:

    1.22 inch

  • Body Length:

    2.677 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE66

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    17

171366-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals on the 171366-1 connector.
  • Yes, the 171366-1 connector is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in industrial or transportation applications.
  • The operating temperature range for the 171366-1 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 171366-1 connector is designed for automated assembly and can be easily integrated into high-volume manufacturing processes.
  • The 171366-1 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections over an extended period.
