171367-1 - TE Connectivity

Description: PCB Mount Header, Horizontal, Wire-to-Board, 21 Position, 5 mm [.197 in] Centerline, Fully Shrouded, Tin (Sn), Through Hole - Screw, Natural, Mark I

Download 171367-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

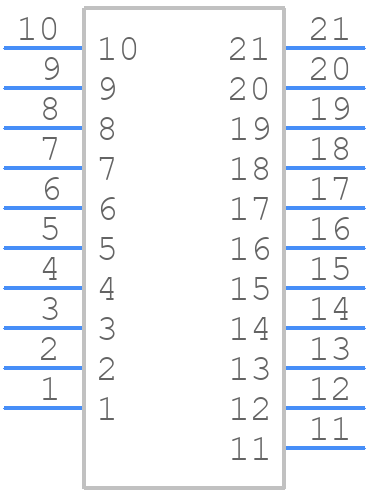

171367-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

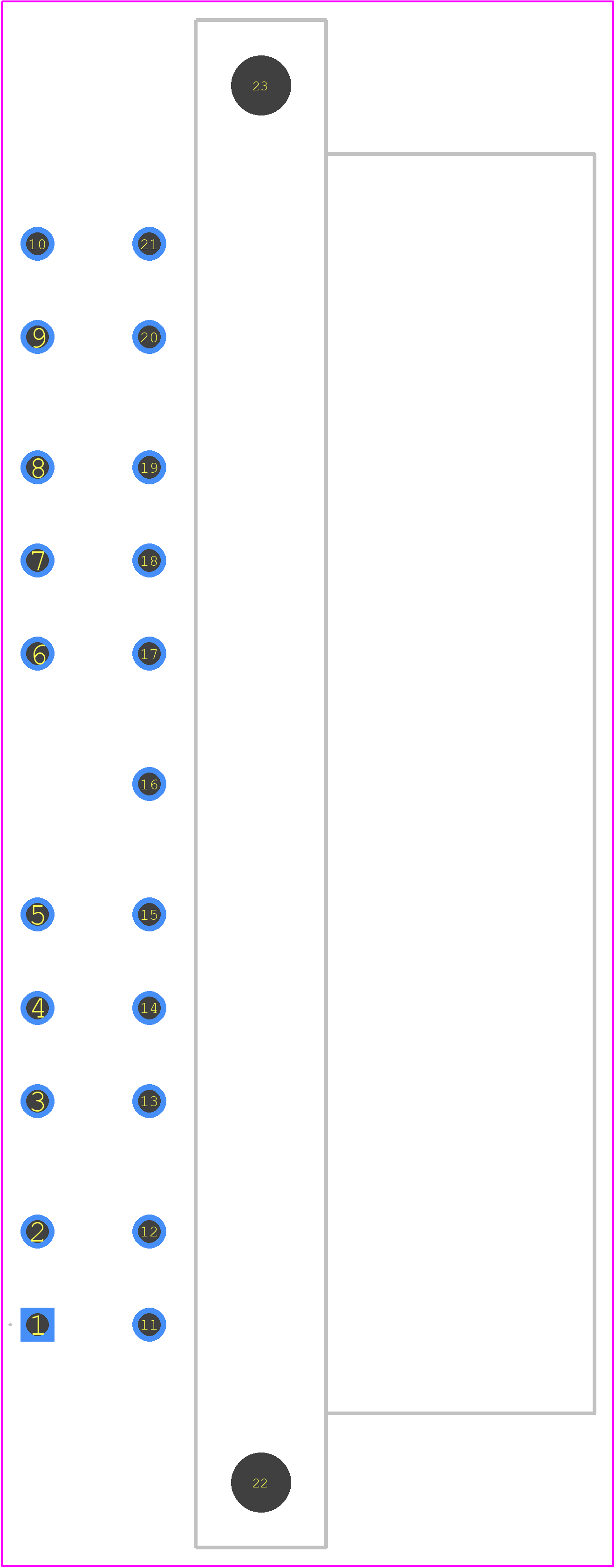

171367-1 - TE Connectivity PCB footprint - Other - Other - 171367-1-3
click to zoom
3D Models
171367-1 - TE Connectivity - 3D model - Other - 171367-1-3
click to zoom

171367-1 Details

  • Manufacturer Part Number:

    171367-1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.657 inch

  • Body Depth:

    1.181 inch

  • Body Length:

    3.228 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE66

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    21

171367-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals on the 171367-1 connector.
  • Yes, the 171367-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Category 1 standard for vibration resistance.
  • The 171367-1 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F).
  • Yes, the 171367-1 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult the datasheet and TE Connectivity's application notes for specific guidance on environmental considerations.
  • While it's technically possible to use a different wire gauge, it's not recommended. The 171367-1 connector is designed to work optimally with wire gauges between 24 AWG and 20 AWG. Using a different gauge may affect the connector's performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

171367-1 Overview

Use the download button to access the 171367-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17136, or try a keyword search, such as Combination Line Connectors
