1714308 - Phoenix Contact

1714308 Frequently Asked Questions (FAQs)

• What is the recommended torque for screwing the connector onto a PCB?
  The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the Phoenix Contact application notes for more detailed guidance.
• Can I use this connector in high-vibration environments?
  Yes, the 1714308 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to prevent damage or disconnection.
• Is the connector suitable for use in humid or wet environments?
  The 1714308 connector has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or applying additional sealing measures.
• Can I use this connector with wire sizes other than the recommended AWG 24-18?
  While the datasheet recommends AWG 24-18, the connector can accommodate other wire sizes. However, it's essential to ensure the wire size and insulation meet the connector's specifications and that the wire is properly stripped and crimped to prevent damage or electrical issues.

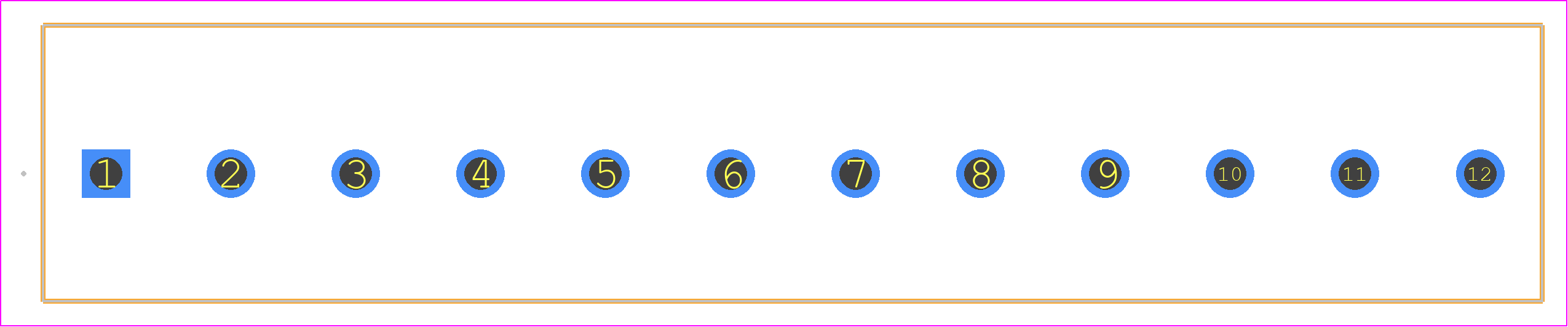

• Are there any specific PCB layout considerations for this connector?
  Yes, Phoenix Contact provides guidelines for PCB layout and footprint design in their application notes. It's essential to follow these guidelines to ensure proper connector mating, prevent electrical issues, and facilitate assembly and rework.
