1714888 - Phoenix Contact

Description: SMD female connector, Nominal current at 20??C: 1.4 A, Test voltage: 500 V?AC, number of positions: 68, pitch: 1.27 mm, color: black, contact surface: Gold, type of contact: Female connector, mounting: SMD soldering

Download 1714888 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1714888 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

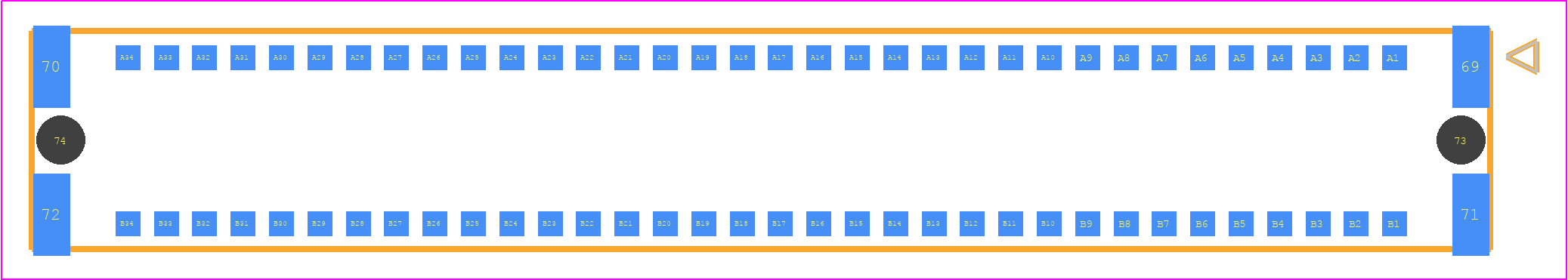

1714888 - Phoenix Contact PCB footprint - Other - Other - 1714888
click to zoom
3D Models
1714888 - Phoenix Contact - 3D model - Other - 1714888
click to zoom

1714888 Details

  • Manufacturer Part Number:

    1714888

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    0

  • Additional Feature:

    STACKING HEIGHT: 10.8MM; 12.3MM; APPROVALS: UL

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.283 inch

  • Body Depth:

    0.356 inch

  • Body Length:

    1.9 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    25 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    0.5 N

  • Insulation Resistance:

    10000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.05 inch

  • Mating Contact Row Spacing:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.5 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1.4 A

  • Reference Standard:

    CUL;EAC;EX

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    68

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    0.5 N

1714888 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material. It's essential to consult the installation instructions and follow the recommended torque to ensure a secure connection.
  • Yes, the 1714888 connector is designed to withstand vibrations and shocks. It meets the requirements of IEC 61373 Category 2, which means it can operate in environments with vibrations up to 15 g (IEC 61373-1) and shocks up to 30 g (IEC 61373-2). However, it's crucial to ensure proper installation and secure fastening to maintain the connector's integrity.
  • The 1714888 connector has a protection rating of IP67, which means it can withstand temporary immersion in water (up to 1 meter for 30 minutes) and is protected against dust ingress. However, it's not designed for continuous outdoor use or exposure to extreme temperatures, chemicals, or UV radiation. For such applications, consider using a connector with a higher protection rating or additional environmental protection measures.
  • While it's technically possible to use a different wire gauge or type, it's not recommended. The 1714888 connector is designed to work with specific wire gauges and types, as specified in the datasheet. Using a different wire gauge or type may compromise the connector's performance, reliability, and safety. If you need to use a different wire, consult with Phoenix Contact or a qualified engineer to ensure the connector's integrity and compliance with relevant standards.
  • To ensure proper mating and unmating, follow the recommended mating and unmating forces, as specified in the datasheet. Also, make sure the connector is clean and free of debris, and that the mating surfaces are aligned properly. Avoid using excessive force, which can damage the connector or its components.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1714888 Overview

Use the download button to access the 1714888 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17148, or try a keyword search, such as Headers and Edge Type Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
