1714899 - Phoenix Contact

Description: SMD female connector, Nominal current at 20??C: 1.4 A, Test voltage: 500 V?AC, number of positions: 68, pitch: 1.27 mm, color: black, contact surface: Gold, type of contact: Female connector, mounting: SMD soldering

Download 1714899 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1714899 - Phoenix Contact - PCB symbol
click to zoom

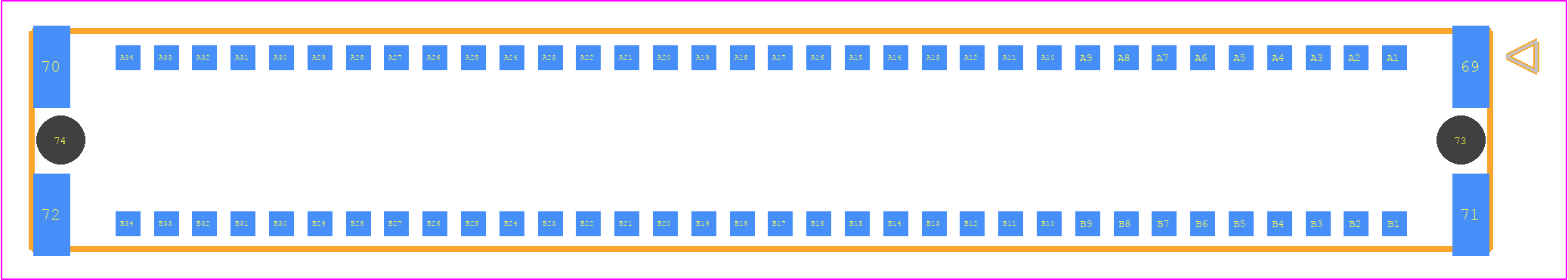

PCB Footprints
1714899 - Phoenix Contact PCB footprint - Other - Other - 1714899
click to zoom
3D Models
1714899 - Phoenix Contact - 3D model - Other - 1714899
click to zoom

1714899 Details

  • Manufacturer Part Number:

    1714899

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    0

  • Additional Feature:

    STACKING HEIGHT = 8MM, 9.5MM; APPROVAL: UL

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.283 inch

  • Body Depth:

    0.246 inch

  • Body Length:

    1.9 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    25 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    0.5 N

  • Insulation Resistance:

    10000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.05 inch

  • Mating Contact Row Spacing:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.5 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1.4 A

  • Reference Standard:

    CUL;EAC;EX

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    68

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    0.5 N

1714899 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material. It's essential to consult the installation instructions and follow the recommended torque to ensure a secure connection.
  • Yes, the 1714899 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure that the connector is properly secured to the panel and that the cables are properly strain-relieved to prevent damage or disconnection.
  • The 1714899 connector has a IP67 rating, which means it's protected against dust and temporary immersion in water. However, it's essential to ensure that the connector is properly sealed and that the cables are protected from environmental factors such as UV, moisture, and extreme temperatures.
  • The 1714899 connector is designed for specific cable types and sizes. While it may be possible to use it with other cables, it's essential to consult the datasheet and ensure that the cable meets the connector's specifications to ensure a reliable connection.
  • To ensure proper EMI shielding, it's essential to follow the recommended installation instructions and ensure that the connector is properly grounded to the panel or chassis. Additionally, using shielded cables and ensuring that the connector is properly sealed can help to minimize EMI radiation.
