1714931 - Phoenix Contact

Description: SMD male connector, Nominal current at 20??C: 1.4 A, Test voltage: 500 V?AC, number of positions: 50, pitch: 1.27 mm, color: black, contact surface: Gold, type of contact: Male connector, mounting: SMD soldering

Download 1714931 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

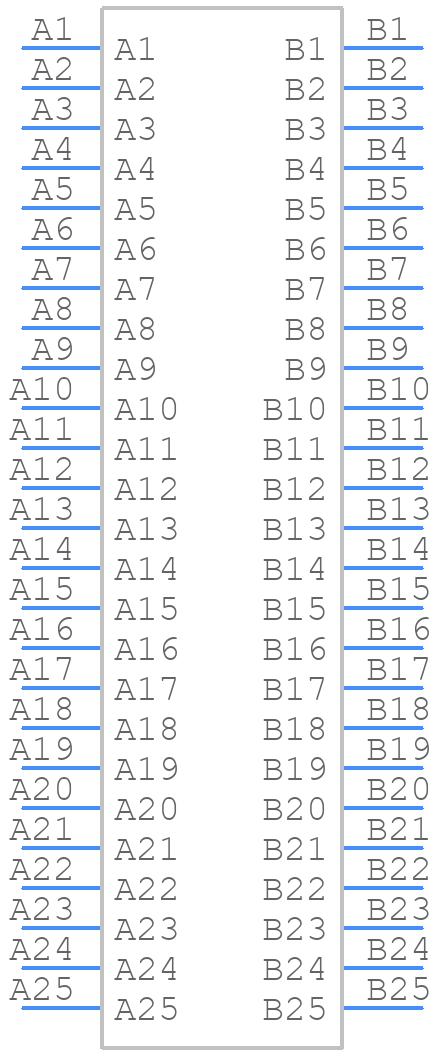

1714931 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

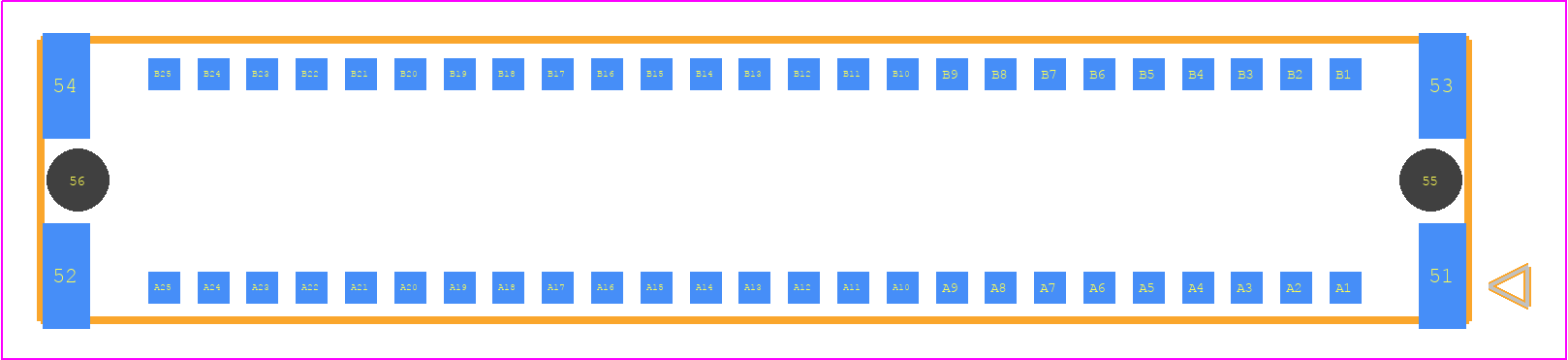

1714931 - Phoenix Contact PCB footprint - Other - Other - 1714931
click to zoom
3D Models
1714931 - Phoenix Contact - 3D model - Other - 1714931
click to zoom

1714931 Details

  • Manufacturer Part Number:

    1714931

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    0

  • Additional Feature:

    STACKING HEIGHT = 9.5MM, 12.3MM; APPROVALS: UL

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.283 inch

  • Body Depth:

    0.323 inch

  • Body Length:

    1.45 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    25 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    0.5 N

  • Insulation Resistance:

    10000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.05 inch

  • Mating Contact Row Spacing:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.5 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1.4 A

  • Reference Standard:

    CUL;EAC;EX

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    0.5 N

1714931 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material.
  • Yes, the 1714931 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing and validation for specific applications.
  • The 1714931 connector has a protection rating of IP67, making it suitable for outdoor use and exposure to dust, water, and other environmental factors. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating.
  • While the datasheet specifies a particular wire gauge and type, it's possible to use other gauges or types with some limitations. Consult with Phoenix Contact's technical support or a qualified engineer to determine the feasibility and potential modifications required.
  • To ensure proper mating and unmating, follow the recommended mating and unmating forces specified in the datasheet, and use a gentle, controlled motion to connect and disconnect the connector. Avoid applying excessive force, twisting, or bending, which can damage the contacts.
