1716072 - Phoenix Contact

Description: DFK-PC 5/ 3-GF-SH-7,62 - Feed-through header, nominal cross section: 6 mm<sup>2</sup>, color: green, nominal current: 32 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: DFK-PC 5/..-GF-SH, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 5 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 5, Electrical prope

Download 1716072 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

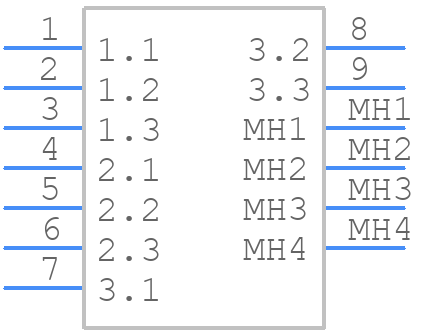

1716072 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

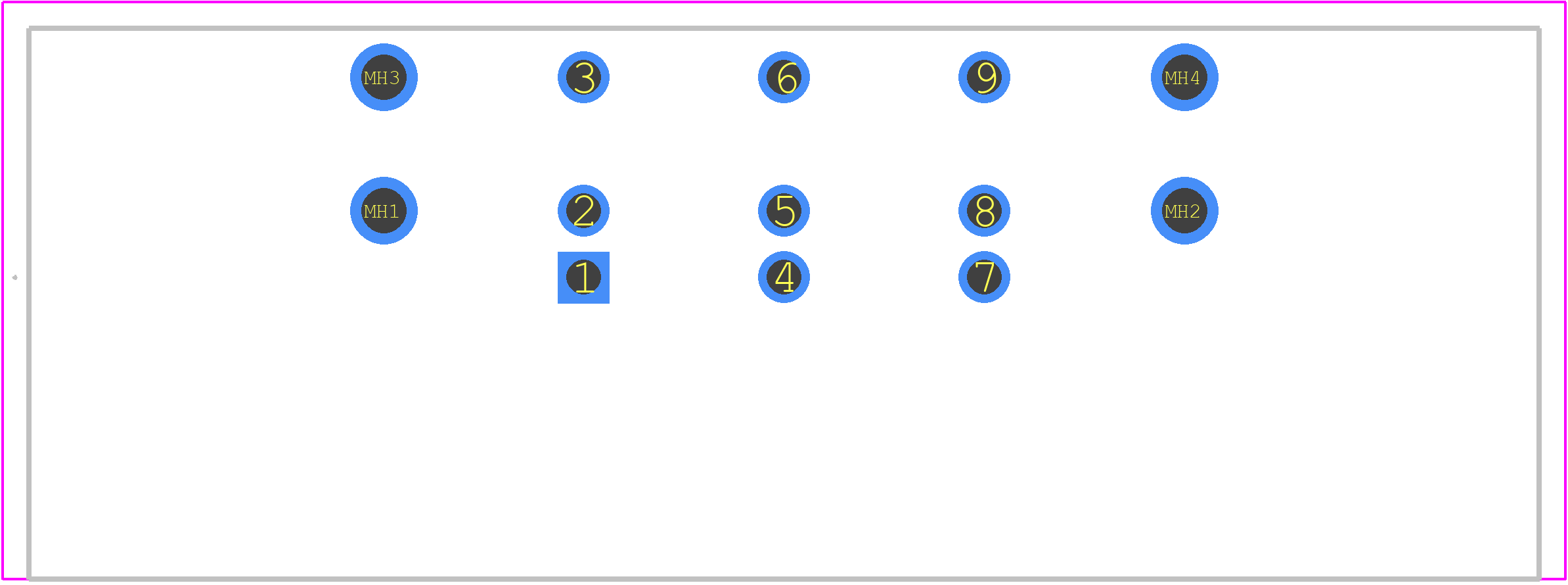

1716072 - Phoenix Contact PCB footprint - Other - Other - 1716072_1
click to zoom
3D Models
1716072 - Phoenix Contact - 3D model - Other - 1716072_1
click to zoom

1716072 Details

  • Manufacturer Part Number:

    1716072

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    2

  • Additional Feature:

    PA, UL 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD AND PANEL

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    41 A

  • Rated Voltage:

    500 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    6 mm2

  • Wire Gauge:

    9 AWG

1716072 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1716072 is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • Yes, the 1716072 has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes, making it suitable for outdoor use.
  • Yes, the 1716072 is designed to accept stranded wires with a wire size range of 0.5 mm² to 2.5 mm².
  • The operating temperature range of the 1716072 is -40°C to 125°C, making it suitable for use in a wide range of applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1716072 Overview

Use the download button to access the 1716072 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17160, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
