Part Image

1717139-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Rows 3 | PCB Mount Orientation Vertical | Number of Signal Positions 132 | Number of Positions 132 | Number of Sections 3 | Number of Rows 2 | Contact Features: Contact Mating Area Plating Material Tin | Contact Size .64mm | Mating Tab Thickness .025 INCH | Contact Size 2.3mm | Contact Type Tab | Mating Tab Width .025 INCH | Mating Tab Width .64 MM | Mating Tab Thickness .64 MM | Mating Tab Width .039 INCH | Mating Tab Width 1 MM

Download 1717139-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1717139-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

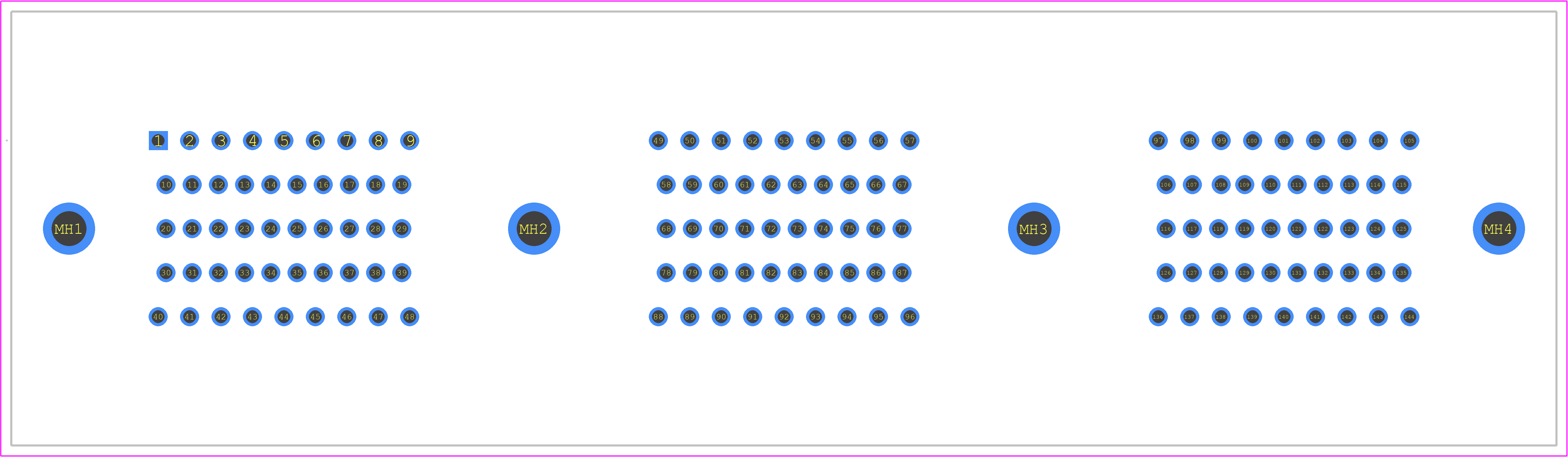

1717139-1 - TE Connectivity PCB footprint - Other - Other - 1717139-1
click to zoom
3D Models
1717139-1 - TE Connectivity - 3D model - Other - 1717139-1
click to zoom

1717139-1 Details

  • Manufacturer Part Number:

    1717139-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    19 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    5.803 inch

  • Body Depth:

    1.331 inch

  • Body Length:

    1.63 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    5

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    132

  • UL Flammability Code:

    94-HB

1717139-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1717139-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 1717139-1 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's not designed for prolonged exposure to direct sunlight, high temperatures, or extreme humidity. For outdoor or harsh environmental use, consider using a connector with a higher IP rating or additional protection measures.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with caution. However, using smaller or larger wire sizes may affect the connector's performance, reliability, and durability. Consult with TE Connectivity or a qualified engineer to determine the feasibility of using alternative wire sizes.
  • Yes, to ensure reliable operation and prevent damage, follow the recommended PCB layout guidelines provided by TE Connectivity. This includes maintaining a minimum clearance of 1.5 mm between the connector and other components, and ensuring the PCB material can withstand the connector's operating temperature range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1717139-1 Overview

Use the download button to access the 1717139-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17171, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
