1717394-2 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Rows 2 | Number of Signal Positions 24 | Number of Positions 24 | PCB Mount Orientation Vertical | Number of Sections 1 | Contact Features: Mating Tab Width .025 INCH | Contact Mating Area Plating Material Tin | Mating Tab Width .64 MM | Mating Tab Thickness .64 MM | Contact Type Tab | Contact Size .63mm | Mating Tab Thickness .025 INCH | Dimensions: Profile Height from PCB 20 MM | Connector Width 41.4 MM | Connector Length 16.2

Download 1717394-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

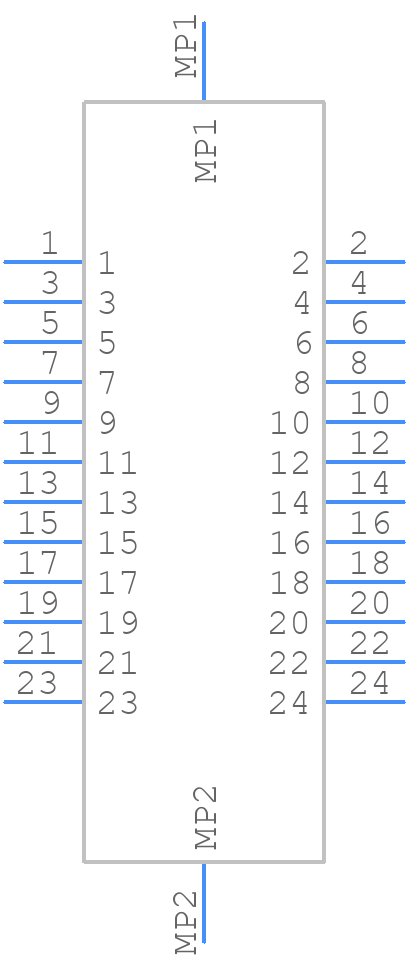

Symbol
1717394-2 - TE Connectivity - PCB symbol
click to zoom

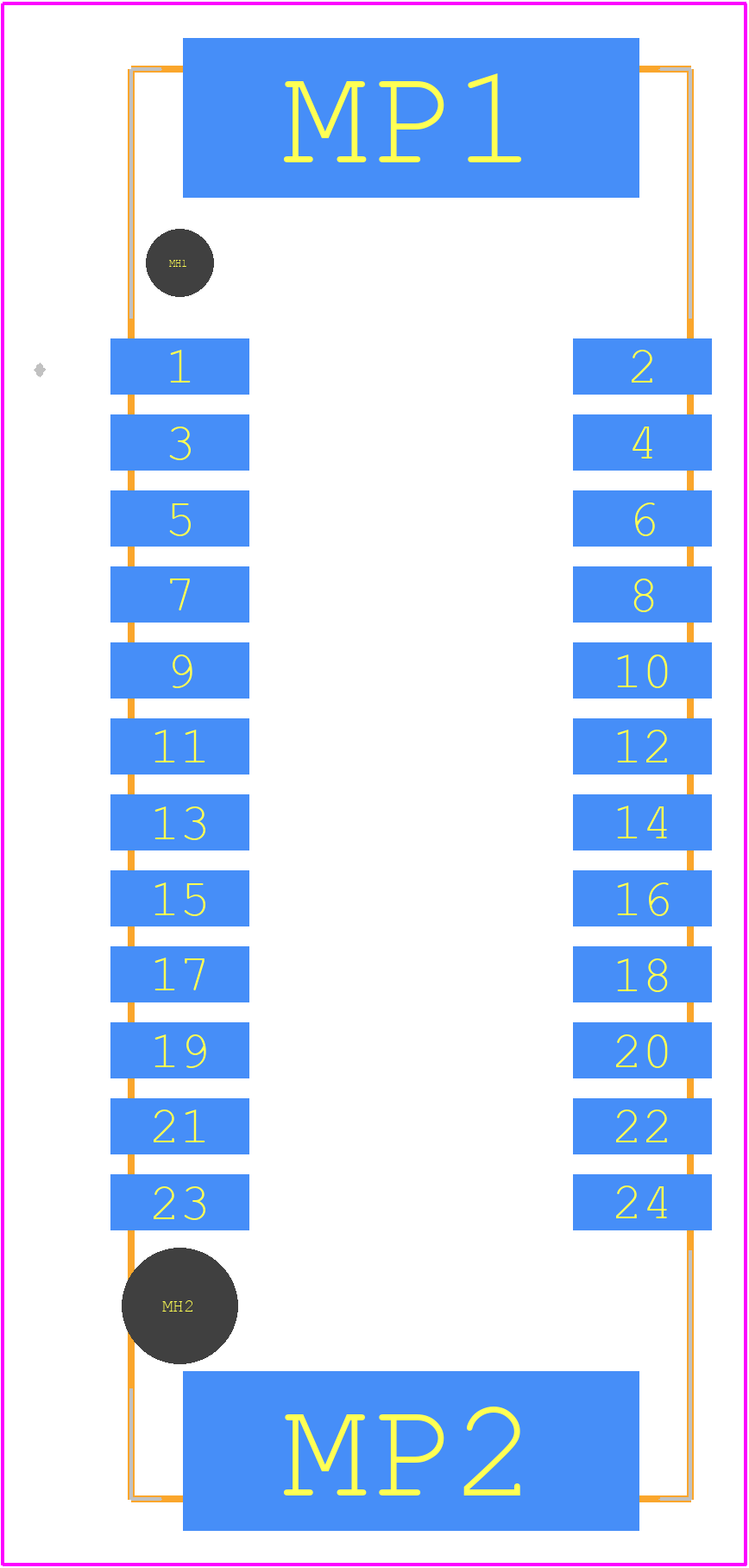

PCB Footprints
1717394-2 - TE Connectivity PCB footprint - Other - Other - 1717394-2-1
click to zoom
3D Models
1717394-2 - TE Connectivity - 3D model - Other - 1717394-2-1
click to zoom

1717394-2 Details

  • Manufacturer Part Number:

    1717394-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    1.63 inch

  • Body Depth:

    0.787 inch

  • Body Length:

    0.638 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYPHENYLENE SULFIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.2 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

1717394-2 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1717394-2 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 1717394-2 connector has a IP67 rating, making it suitable for outdoor or harsh environmental applications. However, it's essential to follow proper sealing and installation procedures to maintain the IP rating.
  • The 1717394-2 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). Exceeding this range may affect the connector's performance and reliability.
  • Yes, the 1717394-2 connector is designed to be compatible with other TE Connectivity products and some third-party components. However, it's essential to verify compatibility and follow proper mating and installation procedures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1717394-2 Overview

Use the download button to access the 1717394-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17173, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
