1718130006 - Molex

Description: 3.96mm Pitch, KK 396 RPC Vertical Header with Friction Lock, Tin (Sn) Plating, Pin Length 17.02mm, Bag, 6 Circuits, without Pegs

Download 1718130006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1718130006 - Molex - PCB symbol
click to zoom
PCB Footprints

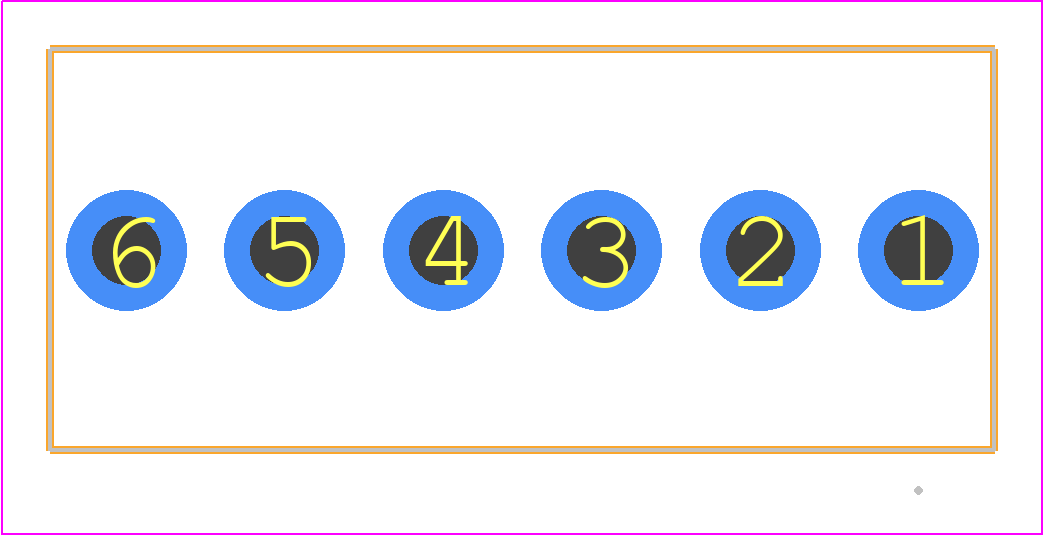

1718130006 - Molex PCB footprint - Other - Other - 171813-0006
click to zoom
3D Models
1718130006 - Molex - 3D model - Other - 171813-0006
click to zoom

1718130006 Details

  • Manufacturer Part Number:

    1718130006

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    India, Mainland China, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.88

  • Body Breadth:

    0.425 inch

  • Body Depth:

    0.545 inch

  • Body Length:

    0.931 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.156 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    POLARIZED LCK

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    7 A

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    3.96 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

1718130006 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 171813-0006 connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, automotive, and aerospace.
  • The connector is rated for operating temperatures up to 105°C (221°F). However, it's essential to consider the temperature rating of the specific application and ensure the connector is used within its specified temperature range.
  • The 171813-0006 connector has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes.
  • Yes, the 171813-0006 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in the European Union and other regions with similar regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1718130006 Overview

Use the download button to access the 1718130006 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17181, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
