1718130106 - Molex

Description: KK 396 RPC Vertical Header, 3.96mm Pitch, Friction Lock, Reflowed Matte Tin (Sn) Plating, 18.29mm Mating Pin Length, 3.56mm Tail Length, Bag, 6 Circuits

Download 1718130106 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1718130106 - Molex - PCB symbol
click to zoom

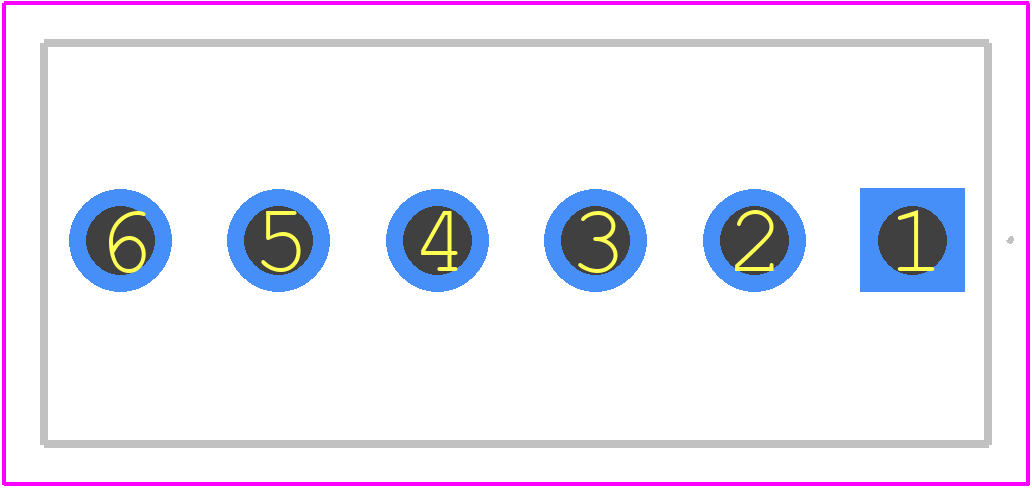

PCB Footprints
1718130106 - Molex PCB footprint - Other - Other - 1718130106-1
click to zoom
3D Models
1718130106 - Molex - 3D model - Other - 1718130106-1
click to zoom

1718130106 Details

  • Manufacturer Part Number:

    1718130106

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Body Breadth:

    0.425 inch

  • Body Depth:

    0.545 inch

  • Body Length:

    0.931 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Mating Contact Pitch:

    0.156 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    POLARIZED LCK

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    7 A

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    3.96 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

1718130106 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 171813-0106 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 171813-0106 connector is designed for indoor use and may not be suitable for outdoor or harsh environmental applications. If you need a connector for outdoor use, consider using a connector with a higher IP rating or environmental protection.
  • While the datasheet recommends using AWG 20-24 wire, you can use other wire sizes with caution. However, using smaller or larger wire sizes may affect the connector's performance, reliability, and durability. Consult with Molex or a qualified engineer for guidance on using non-recommended wire sizes.
  • To ensure proper mating and unmating, follow the recommended mating and unmating sequence, and apply gentle, even pressure. Avoid applying excessive force, which can damage the connector or its components.
