1718132008 - Molex

Description: 3.96mm Pitch, KK 396 RPC Vertical Header with Friction Lock, 15?m Gold (Au) Plating, Pin Length 17.02mm, Bag, 8 circuits, without Pegs

Download 1718132008 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1718132008 - Molex - PCB symbol
click to zoom
PCB Footprints

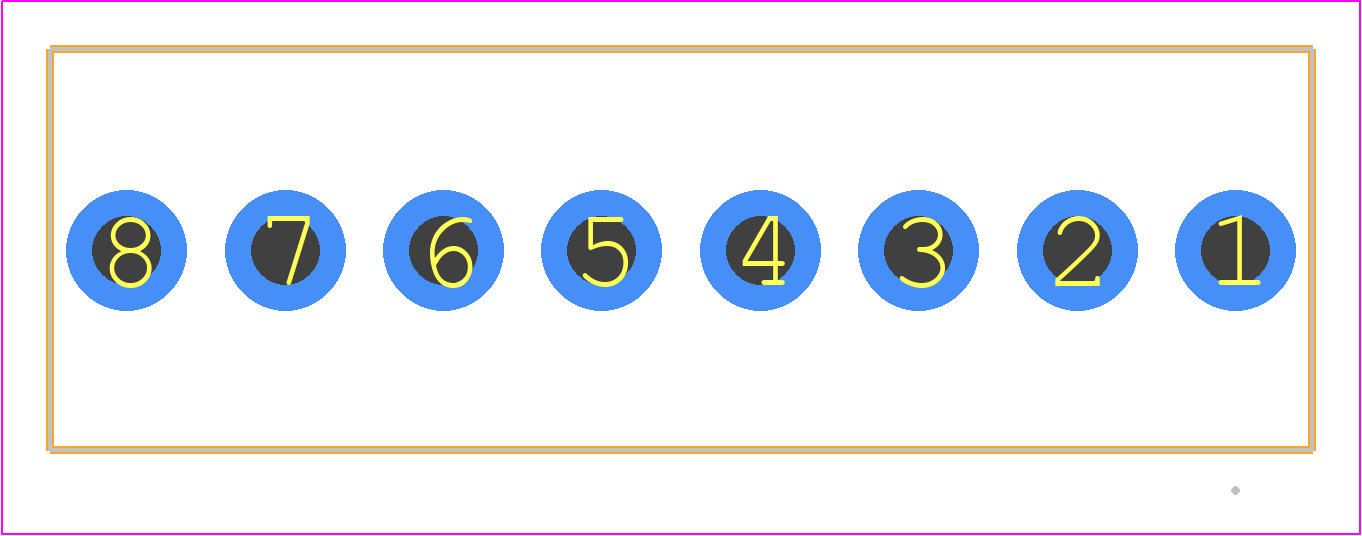

1718132008 - Molex PCB footprint - Other - Other - 171813-0008
click to zoom
3D Models
1718132008 - Molex - 3D model - Other - 171813-0008
click to zoom

1718132008 Details

  • Manufacturer Part Number:

    1718132008

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Molex

  • YTEOL:

    6.6

  • Body Breadth:

    0.394 inch

  • Body Depth:

    0.446 inch

  • Body Length:

    1.242 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Mating Contact Pitch:

    0.156 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    POLARIZED LCK

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    7 A

  • Terminal Length:

    0.092 inch

  • Terminal Pitch:

    3.96 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1718132008 Overview

Use the download button to access the 1718132008 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17181, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
