171882-1 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: Number of Rows 2 | Number of Positions 13 | PCB Mount Orientation Right Angle | Contact Features: Contact Mating Area Plating Material Tin (Sn) | Contact Type Tab | Housing Features: Centerline (Pitch) 5 MM | Centerline (Pitch) .197 INCH | Mechanical Attachment: Mating Alignment With | PCB Mount Retention Without | PCB Mount Alignment With | Connector Mounting Type Board Mount | Packaging Features: Packaging Method Tube | Product Type Fe

Download 171882-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
171882-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

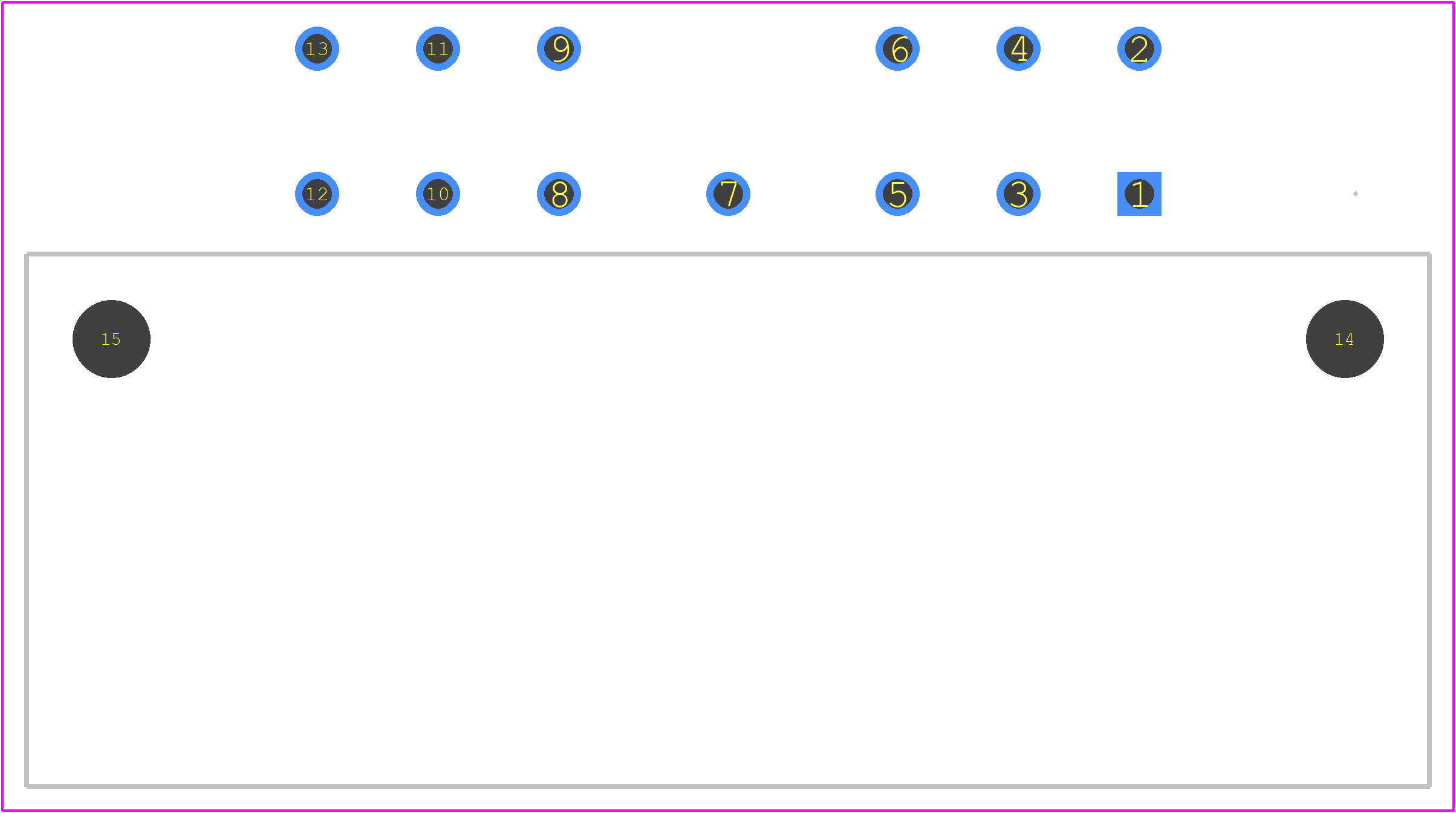

171882-1 - TE Connectivity PCB footprint - Other - Other - 171882-1-2
click to zoom
3D Models
171882-1 - TE Connectivity - 3D model - Other - 171882-1-2
click to zoom

171882-1 Details

  • Manufacturer Part Number:

    171882-1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.657 inch

  • Body Depth:

    1.22 inch

  • Body Length:

    2.283 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE66

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    13

171882-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals on the 171882-1 connector.
  • Yes, the 171882-1 connector is designed to withstand high-vibration environments, but it's recommended to follow TE Connectivity's guidelines for vibration testing and to ensure proper mounting and securing of the connector.
  • The operating temperature range for the 171882-1 connector is -40°C to 125°C (-40°F to 257°F), but it's recommended to derate the connector's performance at extreme temperatures.
  • The 171882-1 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's recommended to follow TE Connectivity's guidelines for environmental sealing and to ensure proper connector mating and sealing.
  • The recommended wire size for the 171882-1 connector is 24-18 AWG (0.25-1.5 mm²), and the recommended wire type is a stranded, tin-plated copper wire with a temperature rating of 150°C (302°F) or higher.
