172-015-142R001 - NorComp

Description: NORCOMP - 172-015-142R001 - D SUB CONNECTOR, PLUG, 15POS

Download 172-015-142R001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
172-015-142R001 - NorComp - PCB symbol
click to zoom
PCB Footprints

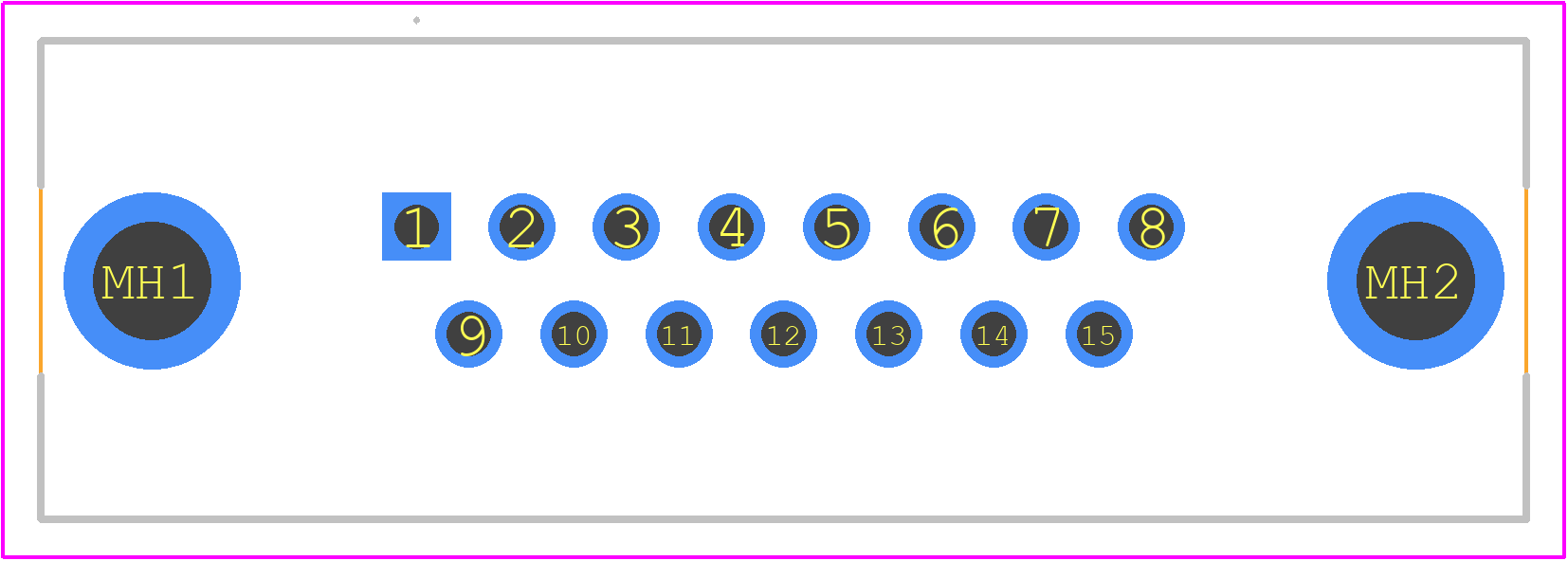

172-015-142R001 - NorComp PCB footprint - Other - Other - 172-015-142R001-2
click to zoom
3D Models
172-015-142R001 - NorComp - 3D model - Other - 172-015-142R001-2
click to zoom

172-015-142R001 Details

  • Manufacturer Part Number:

    172-015-142R001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    0

  • Board Mounting Option:

    HOLE 0.12

  • Body Breadth:

    0.496 inch

  • Body Depth:

    0.192 inch

  • Body Length:

    1.541 inch

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Gender:

    MALE

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    500VAC V

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Material:

    POLYAMIDE6T

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    HOLE 0.12

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -50 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.84 mm

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    2/A

  • Terminal Length:

    0.503 inch

  • Terminal Pitch:

    2.76 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

172-015-142R001 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 172-015-142R001 connector is designed to withstand vibrations and is suitable for use in high-vibration environments. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 172-015-142R001 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments to maintain its IP67 rating.
  • The 172-015-142R001 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the datasheet specifies AWG 24-16 wire sizes, the connector can accommodate other wire sizes with proper termination and strain relief. However, it's essential to consult with NorComp or a qualified engineer to ensure compatibility and reliability.
