172-025-213R001 - NorComp

Description: D-Sub Standard Connectors D-Sub Conn 25P F Dip Solder NICKEL

Download 172-025-213R001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
172-025-213R001 - NorComp - PCB symbol
click to zoom
PCB Footprints

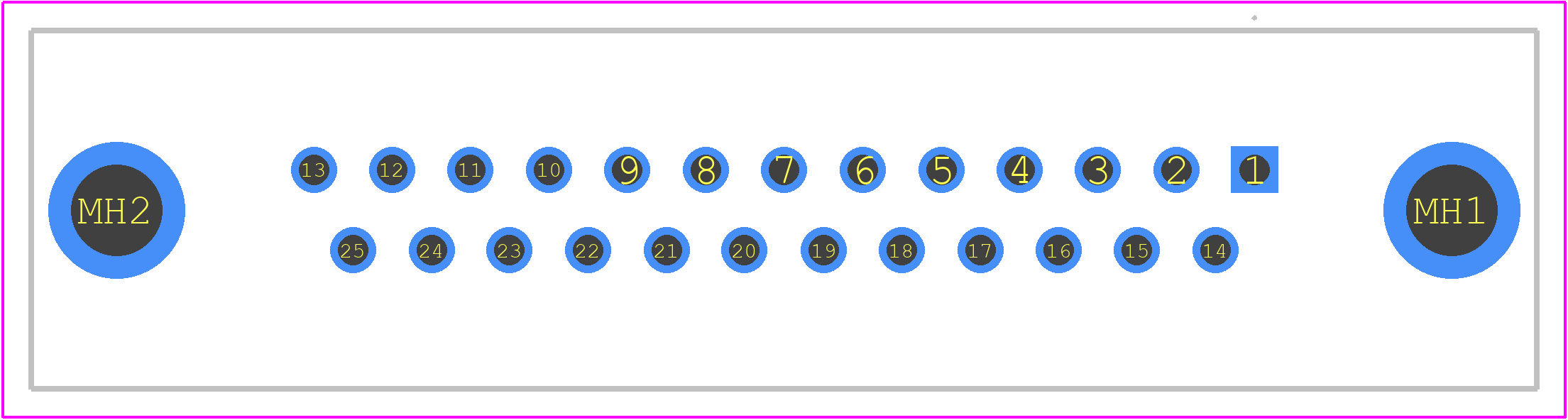

172-025-213R001 - NorComp PCB footprint - Other - Other - 172-025-213R001-1
click to zoom
3D Models
172-025-213R001 - NorComp - 3D model - Other - 172-025-213R001-1
click to zoom

172-025-213R001 Details

  • Manufacturer Part Number:

    172-025-213R001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    8.5

  • Body Breadth:

    0.429 inch

  • Body Depth:

    0.224 inch

  • Body Length:

    2.088 inch

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    RND PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Material:

    POLYAMIDE6T

  • Mating Contact Pitch:

    0.004 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -50 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    0.112 mm

  • Plating Thickness:

    FLASH inch

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    3/B

  • Terminal Length:

    0.206 inch

  • Terminal Pitch:

    0.109 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    25

  • UL Flammability Code:

    94V-0

172-025-213R001 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4-6 in-lbs). However, it's always best to consult the specific application requirements and the manufacturer's recommendations.
  • Yes, the 172-025-213R001 connector is designed to withstand vibrations and is suitable for use in harsh environments. However, it's essential to ensure proper mounting and securement to prevent damage or disconnection.
  • The 172-025-213R001 connector has a IP67 rating, which means it is protected against dust and water immersion up to 1 meter for 30 minutes. However, it's recommended to use additional protection measures, such as conformal coating or potting, for extended outdoor use.
  • The 172-025-213R001 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application requirements and potential derating factors.
  • While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge. However, it's crucial to ensure the wire gauge meets the connector's specifications and doesn't compromise the connector's performance or reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

172-025-213R001 Overview

Use the download button to access the 172-025-213R001 schematic symbol, PCB footprint, and 3D model.
