172023-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Number of Positions 36 | Number of Rows 2 | PCB Mount Orientation Right Angle | Contact Features: Contact Type Pin | Contact Mating Area Plating Material Tin (Sn) | Contact Current Rating (Max) 5 AMP | Housing Features: Centerline (Pitch) .118 INCH | Centerline (Pitch) 3 MM | Mechanical Attachment: PCB Mount Retention Without | PCB Mount Alignment With | Mating Alignment With | Packaging Features: Packaging Method Tray | Product Type Featu

Download 172023-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

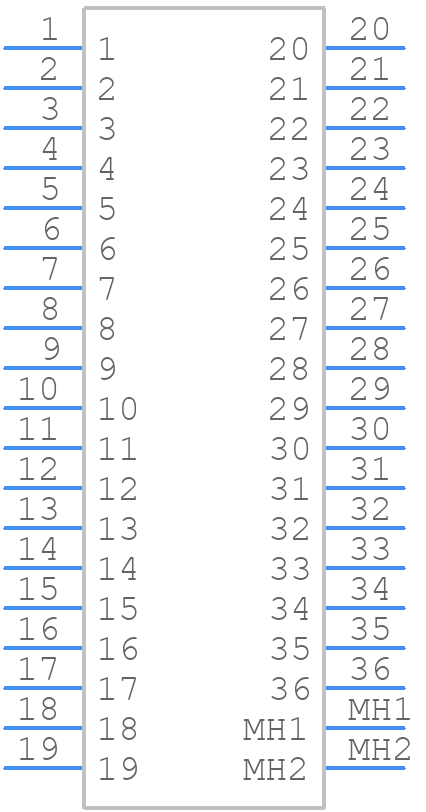

Symbol
172023-1 - TE Connectivity - PCB symbol
click to zoom

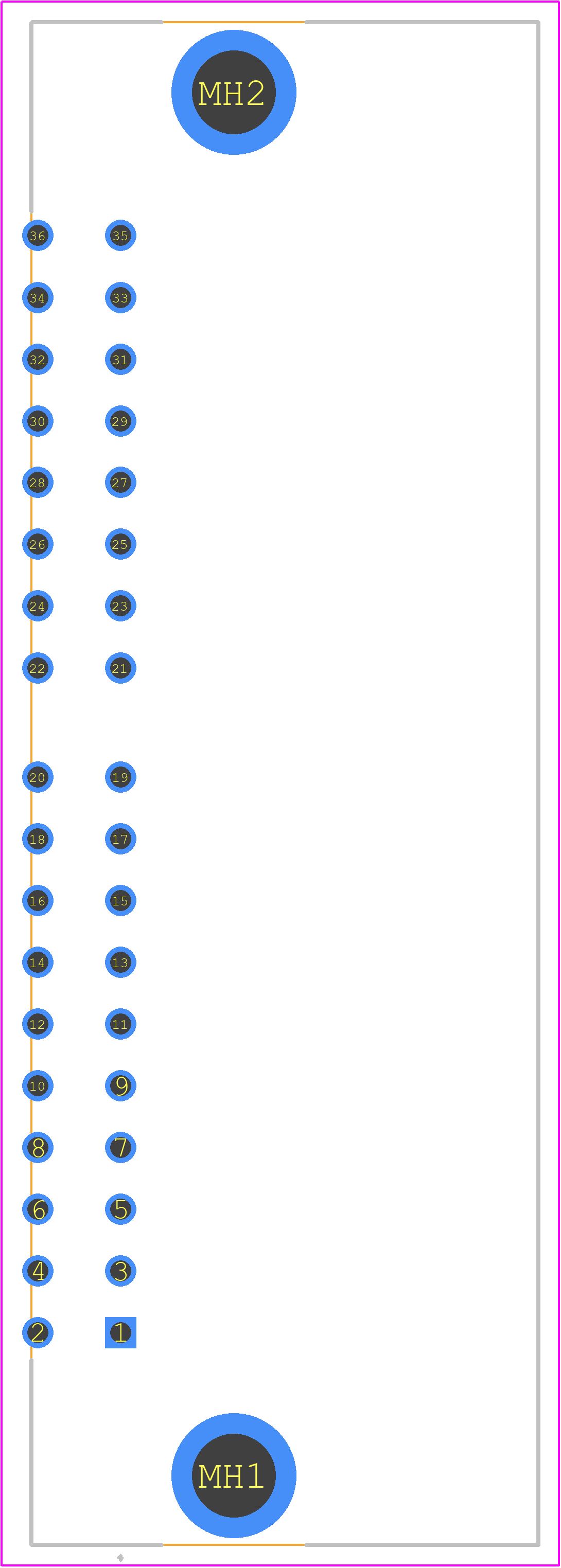

PCB Footprints
172023-1 - TE Connectivity PCB footprint - Other - Other - 172023-1-2
click to zoom
3D Models
172023-1 - TE Connectivity - 3D model - Other - 172023-1-2
click to zoom

172023-1 Details

  • Manufacturer Part Number:

    172023-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.713 inch

  • Body Depth:

    0.969 inch

  • Body Length:

    2.913 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE66

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    36

172023-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's guidelines for the specific connector series.
  • The 172023-1 connector is designed to meet the requirements of IEC 61984, which includes vibration testing. However, it's essential to consult TE Connectivity's documentation and perform additional testing to ensure the connector meets the specific vibration requirements of your application.
  • The operating temperature range for the 172023-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's crucial to consider the specific application requirements and potential derating factors that may affect the connector's performance.
  • The 172023-1 connector is designed to meet the requirements of IEC 61984, which includes testing for environmental factors like humidity and temperature. However, it's essential to consult TE Connectivity's documentation and perform additional testing to ensure the connector meets the specific environmental requirements of your application.
  • While the datasheet specifies a particular wire gauge and type, it's possible to use a different wire gauge or type with the 172023-1 connector. However, it's crucial to consult TE Connectivity's documentation and perform additional testing to ensure the connector meets the specific requirements of your application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

172023-1 Overview

Use the download button to access the 172023-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17202, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
