Part Image

1720420301 - Molex

Description: Super Sabre Vertical Header, 3 Circuit, Short Solder Tail without Board Lock, Complies with UL1977 Finger Proof Standards, Glow-Wire Capable

Download 1720420301 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1720420301 - Molex - PCB symbol
click to zoom
PCB Footprints

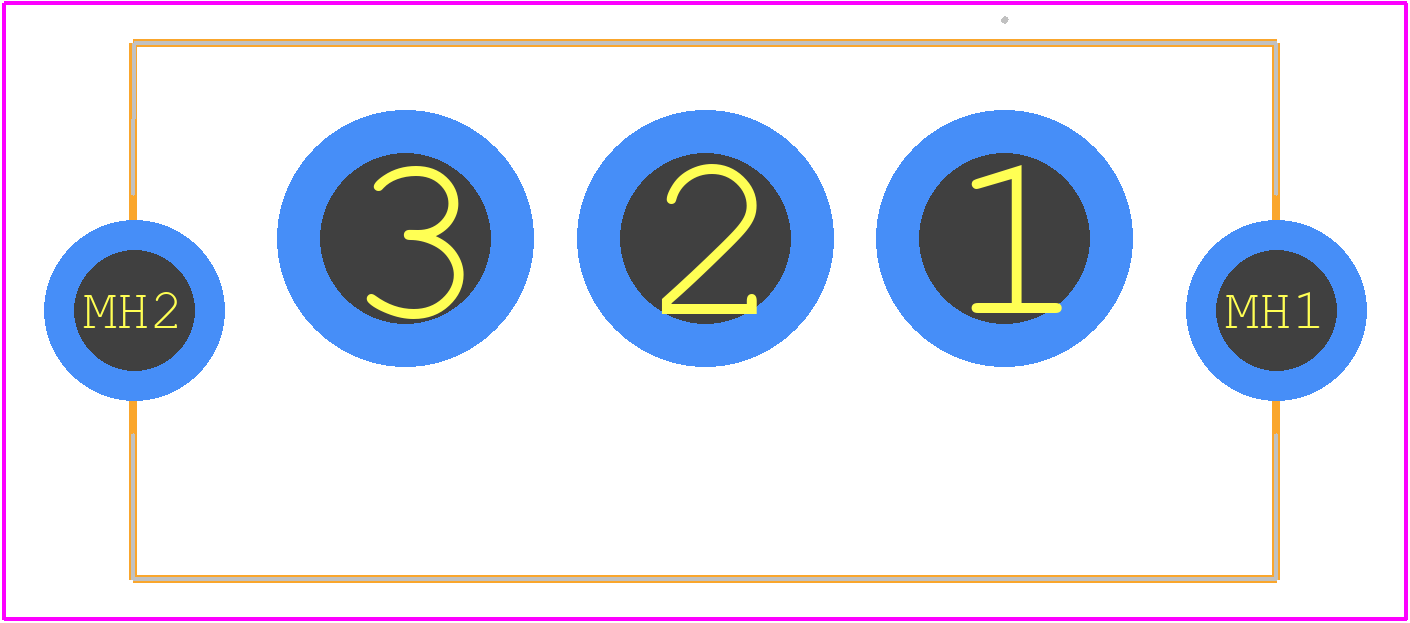

1720420301 - Molex PCB footprint - Other - Other - 1720420301-4
click to zoom
3D Models
1720420301 - Molex - 3D model - Other - 1720420301-4
click to zoom

1720420301 Details

  • Manufacturer Part Number:

    1720420301

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 30A, POLARIZED

  • Body Breadth:

    0.454 inch

  • Body Depth:

    0.581 inch

  • Body Length:

    1.125 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    BLADE PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • Mating Information:

    172672 SERIES HOUSING

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

  • UL Flammability Code:

    94V-0

1720420301 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 1720420301 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and securing of the connector.
  • Yes, the 1720420301 connector is designed for automated assembly and wire termination. It features a compact design and is compatible with standard wire termination tools and equipment.
  • The operating temperature range for the 1720420301 connector is -40°C to 105°C (-40°F to 221°F).
  • The 1720420301 connector is designed to meet IP67 standards, making it suitable for use in harsh environments. However, it's recommended to follow the manufacturer's guidelines for environmental testing and to ensure proper sealing and protection of the connector.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1720420301 Overview

Use the download button to access the 1720420301 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17204, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
