1720479 - Phoenix Contact

Description: PC 5/ 3-G-7,62 - PCB headers, nominal cross section: 6 mm<sup>2</sup>, color: green, nominal current: 32 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: PC 5/..-G, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 5 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 5, Pin connector pattern alignment: Standar

Download 1720479 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1720479 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

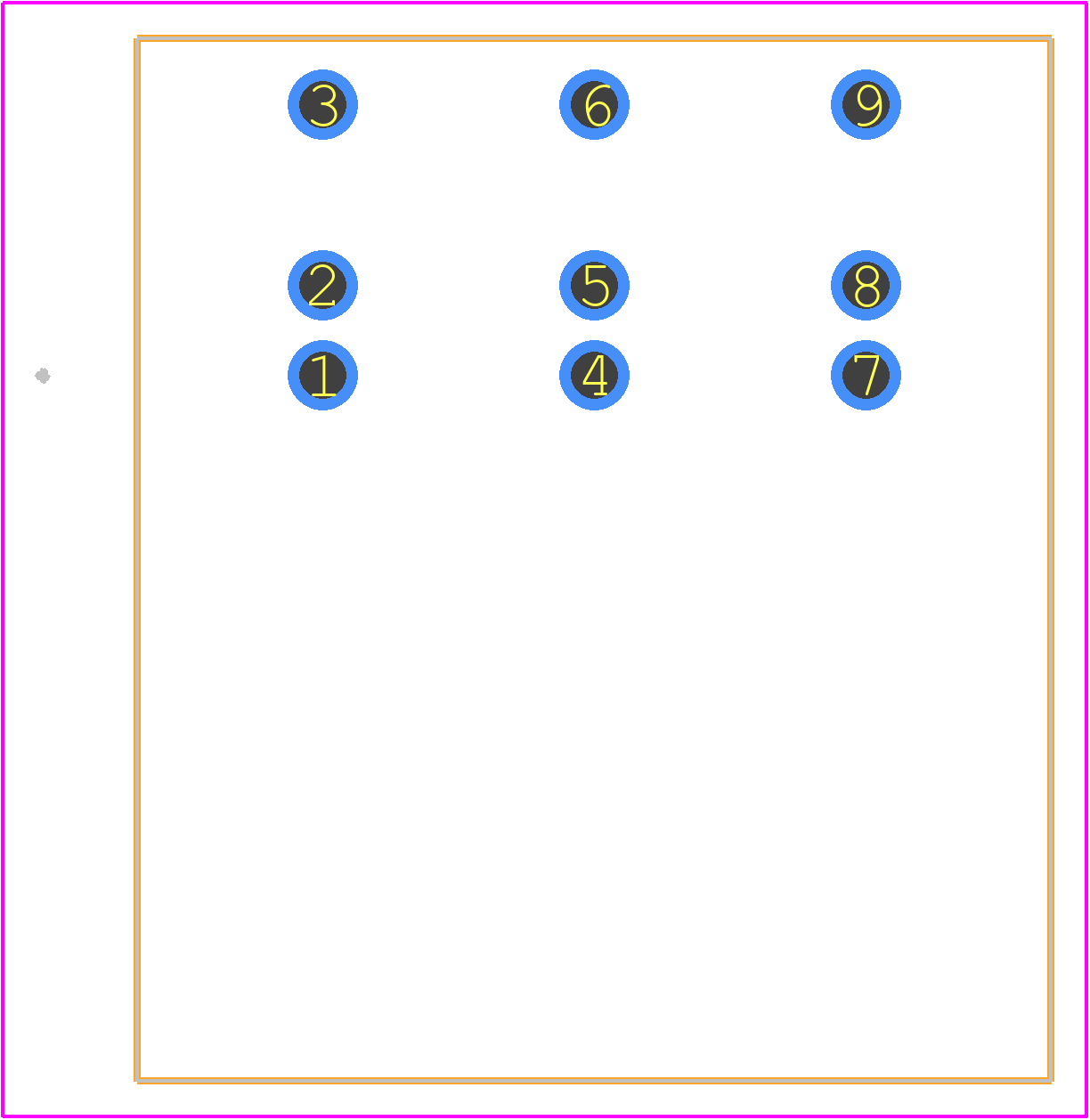

1720479 - Phoenix Contact PCB footprint - Other - Other - 1720479
click to zoom
3D Models
1720479 - Phoenix Contact - 3D model - Other - 1720479
click to zoom

1720479 Details

  • Manufacturer Part Number:

    1720479

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.57

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    41 A

  • Rated Voltage:

    500 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1720479 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and material to ensure the correct torque value.
  • Yes, the 1720479 connector is designed to withstand vibrations and shocks according to IEC 61373 Category 2. However, it's crucial to ensure proper mounting and screwing to the PCB to maintain the connector's integrity.
  • The 1720479 connector has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or applying additional sealing measures.
  • While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance, reliability, and safety. Stick to the recommended wire gauge range of 0.5 mm² to 1.5 mm² to ensure optimal results.
  • Yes, ensure the PCB layout allows for a minimum of 1.5 mm clearance around the connector to prevent interference with other components. Also, consider the connector's pinout and signal integrity when designing the PCB layout.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1720479 Overview

Use the download button to access the 1720479 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17204, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
