1720495 - Phoenix Contact

Description: PC 5/ 5-G-7,62 - PCB headers, nominal cross section: 6 mm<sup>2</sup>, color: green, nominal current: 32 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Pin, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range: PC 5/..-G, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 5 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 5, Pin connector pattern alignment: Standar

Download 1720495 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

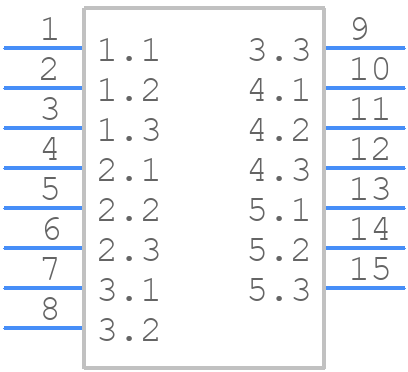

1720495 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

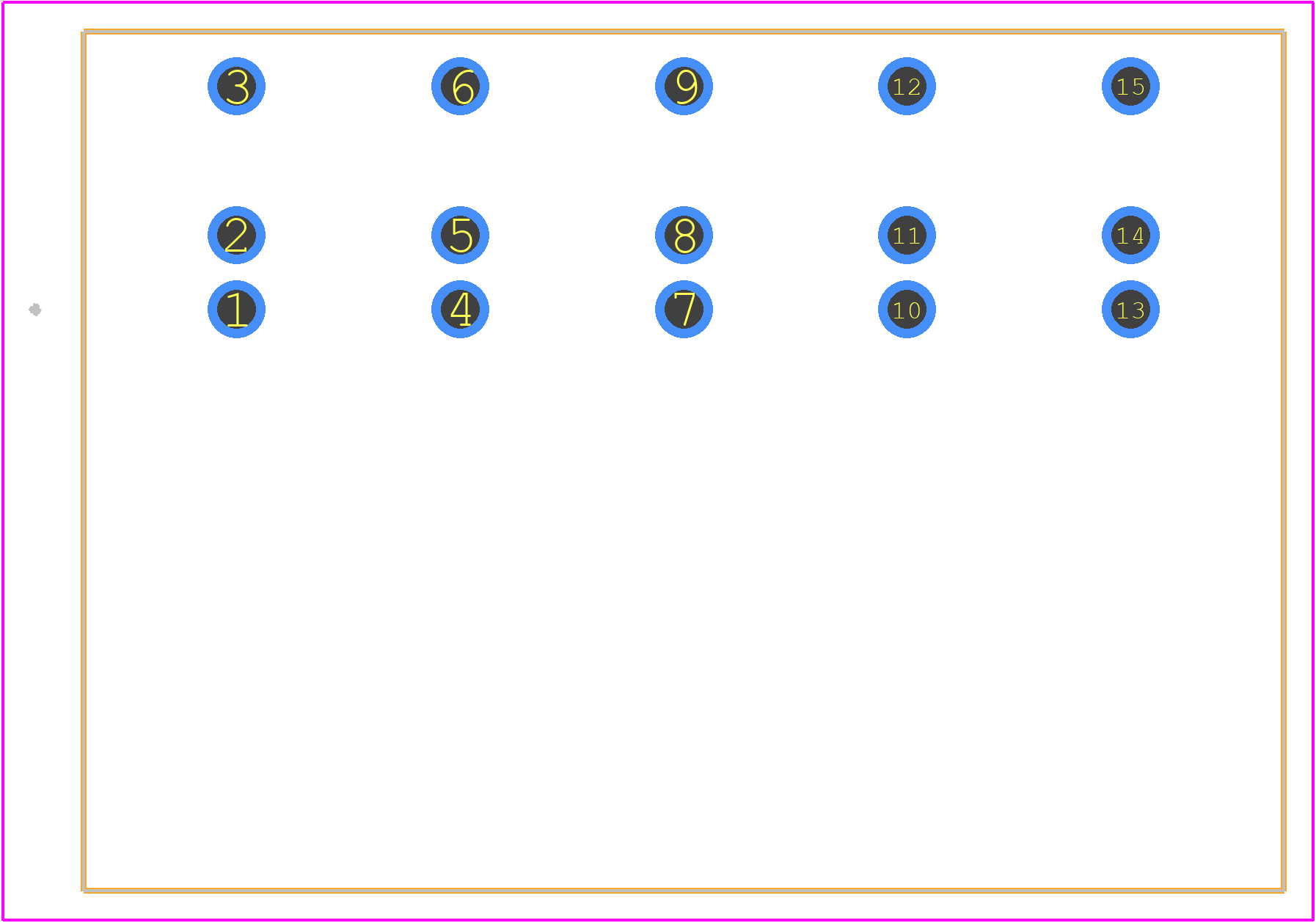

1720495 - Phoenix Contact PCB footprint - Other - Other - 1720495
click to zoom
3D Models
1720495 - Phoenix Contact - 3D model - Other - 1720495
click to zoom

1720495 Details

  • Manufacturer Part Number:

    1720495

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.57

  • Additional Feature:

    94V-0, PA

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    41 A

  • Rated Voltage:

    500 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1720495 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact's general technical guidelines.
  • Yes, the 1720495 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • The 1720495 connector has a protection rating of IP67, which means it can withstand temporary immersion in water and exposure to dust, making it suitable for outdoor use or harsh environmental conditions.
  • While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge. However, it's essential to ensure the wire gauge meets the connector's minimum and maximum wire size specifications to ensure reliable connections.
  • Yes, ensure proper handling and installation of the connector to avoid electrical shock or short circuits. Also, follow Phoenix Contact's guidelines for proper wire stripping and crimping to ensure reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1720495 Overview

Use the download button to access the 1720495 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17204, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
