1720641008 - Molex

Description: 5.70mm Pitch, Mega-Fit Right-Angle Header, 8 Circuits, 0.76µm Gold (Au) Plating, UL 94 V-0, Glow-Wire Capable, Tray, Black

Download 1720641008 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1720641008 - Molex - PCB symbol
click to zoom
PCB Footprints

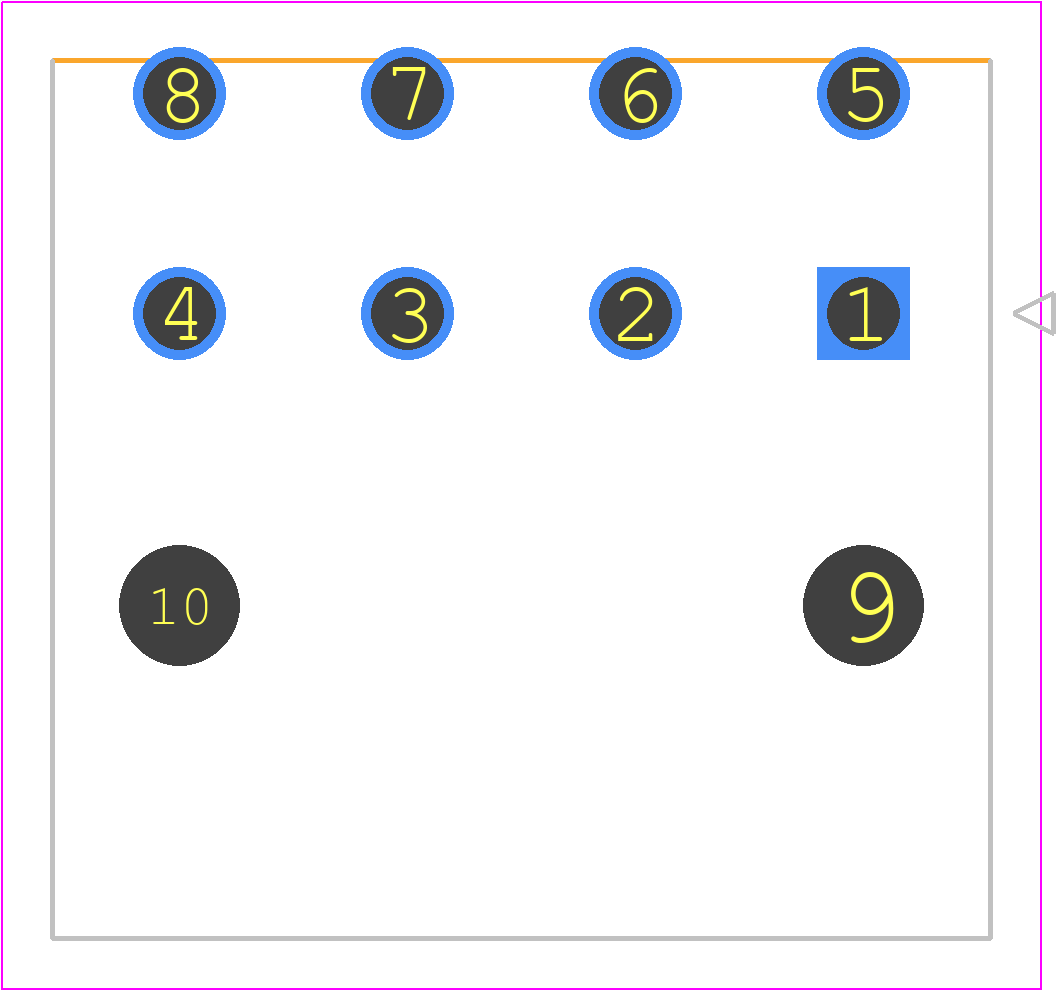

1720641008 - Molex PCB footprint - Other - Other - 172064YY08
click to zoom
3D Models
1720641008 - Molex - 3D model - Other - 172064YY08
click to zoom

1720641008 Details

  • Manufacturer Part Number:

    1720641008

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Additional Feature:

    SHROUDED

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    23 A

  • Reference Standard:

    CSA, UL

  • Shell Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

1720641008 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 1720641008 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 1720641008 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
  • The maximum operating temperature for the 1720641008 connector is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
  • Yes, the 1720641008 connector is designed for automated assembly processes. It features a pick-and-place compatible design and can be easily integrated into automated manufacturing lines.
  • The recommended torque for the screw locks on the 1720641008 connector is 0.5-1.5 Nm (0.37-1.06 lb-ft). Over-torquing may damage the connector or the PCB.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1720641008 Overview

Use the download button to access the 1720641008 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17206, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
