1720650306 - Molex

Description: Mega-Fit Slim Vertical Header, Through Hole, 5.70mm Pitch, Dual Row, 6 Circuits, 0.76µm Gold (Au) Plating, Glow-Wire Capable, Black

Download 1720650306 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1720650306 - Molex - PCB symbol
click to zoom

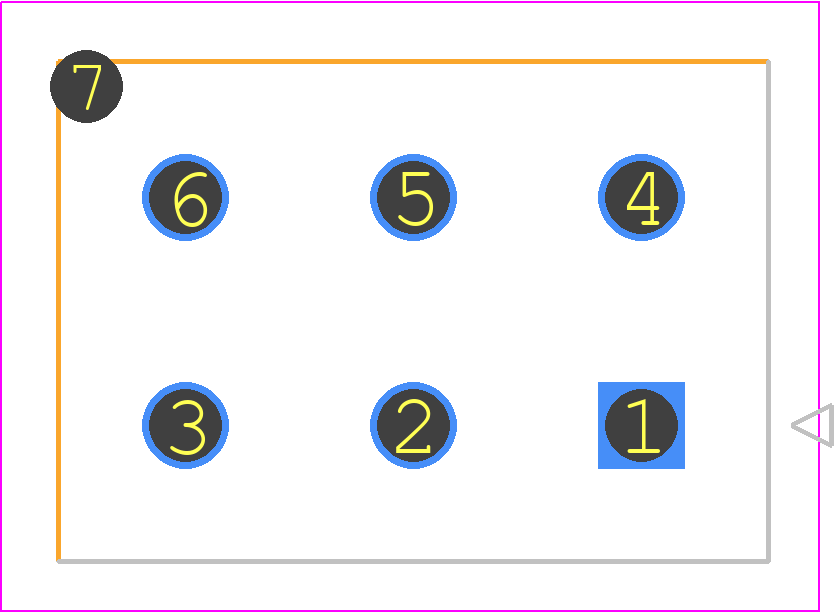

PCB Footprints
1720650306 - Molex PCB footprint - Other - Other - 172065(02,03)06
click to zoom
3D Models
1720650306 - Molex - 3D model - Other - 172065(02,03)06
click to zoom

1720650306 Details

  • Manufacturer Part Number:

    1720650306

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 23A, POLARIZED

  • Body Breadth:

    0.491 inch

  • Body Depth:

    0.583 inch

  • Body Length:

    0.699 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    BLADE PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • Mating Information:

    171692, 170001 SERIES HOUSING

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

1720650306 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 1720650306 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 1720650306 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
  • The maximum operating temperature for the 1720650306 connector is 125°C (257°F). Exceeding this temperature may affect the connector's performance and reliability.
  • While it's possible to use a different wire gauge, it's not recommended. Using a wire gauge that's not specified in the datasheet may affect the connector's performance, reliability, and durability.
  • To ensure proper EMI shielding, make sure to follow the recommended grounding and shielding procedures outlined in the datasheet. Additionally, use a shielded cable and ensure the connector is properly mated to the PCB or other connector.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1720650306 Overview

Use the download button to access the 1720650306 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17206, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
