1720651012 - Molex

Description: Mega-Fit Vertical Header, Through Hole, 5.70mm Pitch, Dual Row, 12 Circuits, 0.76µm Gold (Au) Plating, Glow-Wire Capable, Black

Download 1720651012 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1720651012 - Molex - PCB symbol
click to zoom
PCB Footprints

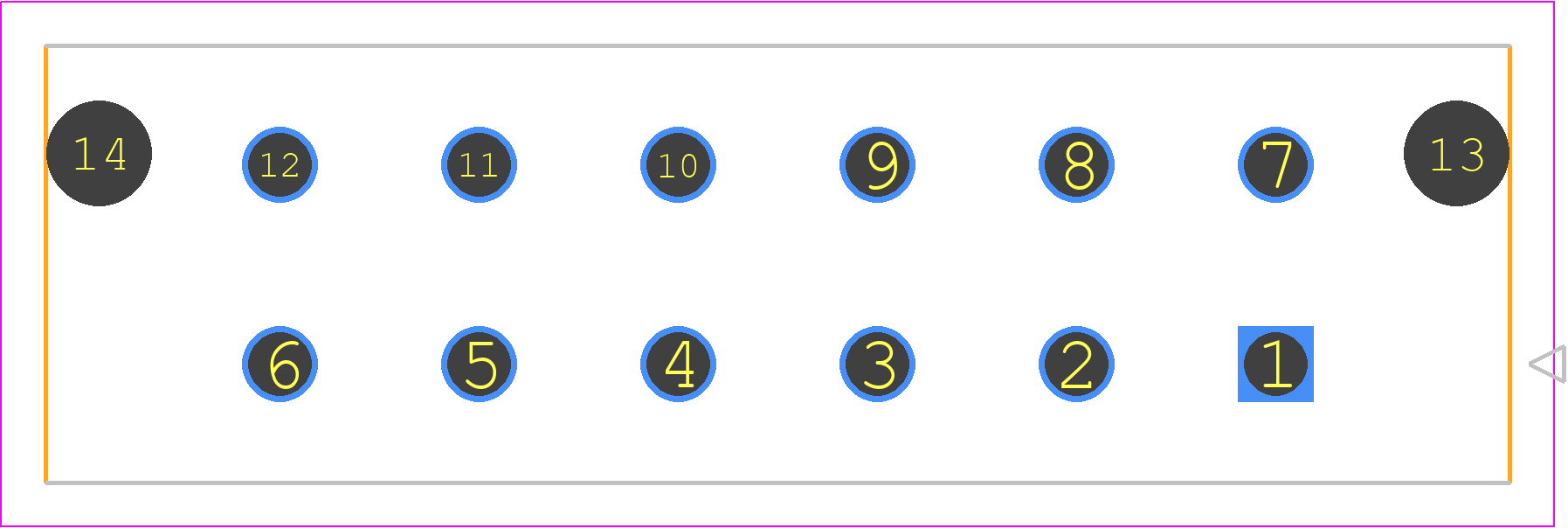

1720651012 - Molex PCB footprint - Other - Other - 172065(00,10)12
click to zoom
3D Models
1720651012 - Molex - 3D model - Other - 172065(00,10)12
click to zoom

1720651012 Details

  • Manufacturer Part Number:

    1720651012

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7.3

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.552 inch

  • Body Depth:

    0.583 inch

  • Body Length:

    1.65 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Arrangement:

    S0P12

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Resistance:

    5 mΩ

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    2200VAC V

  • Durability:

    200 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    LATCH

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Plating Thickness:

    30u inch

  • Reference Standard:

    CSA, UL

  • Terminal Length:

    0.147 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

1720651012 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1720651012 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to follow Molex's guidelines for vibration testing and to ensure proper mounting and securing of the connector.
  • The 1720651012 connector is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper sealing and protection. Molex offers additional sealing options and accessories to ensure the connector meets the required IP rating.
  • The 1720651012 connector is designed to accommodate wire sizes from 24 AWG to 18 AWG. Using larger wire sizes may require additional processing or specialized tools, and it's recommended to consult with Molex or a qualified engineer for guidance.
  • The 1720651012 connector is designed to be compatible with Molex's mating connectors. While it may be possible to use it with connectors from other manufacturers, compatibility and reliability cannot be guaranteed. It's recommended to use Molex's mating connectors to ensure optimal performance and reliability.
