1720864 - Phoenix Contact

Description: PC 5/ 9-GF-7,62 - PCB headers, nominal cross section: 6 mm<sup>2</sup>, color: green, nominal current: 32 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Pin, number of potentials: 9, number of rows: 1, number of positions: 9, number of connections: 9, product range: PC 5/..-GF, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 5 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 5, Pin connector pattern alignment: Stand

Download 1720864 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

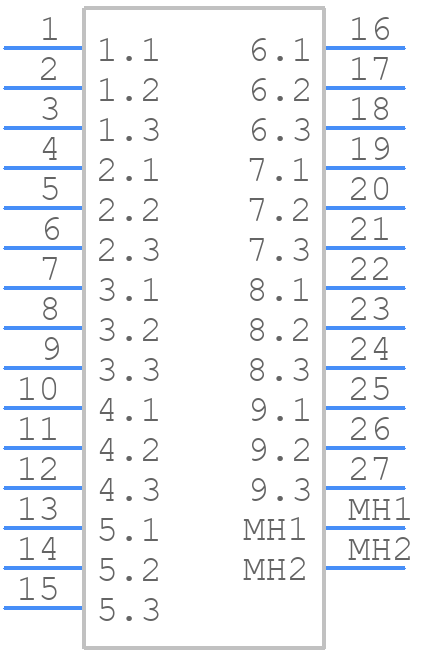

Symbol
1720864 - Phoenix Contact - PCB symbol
click to zoom

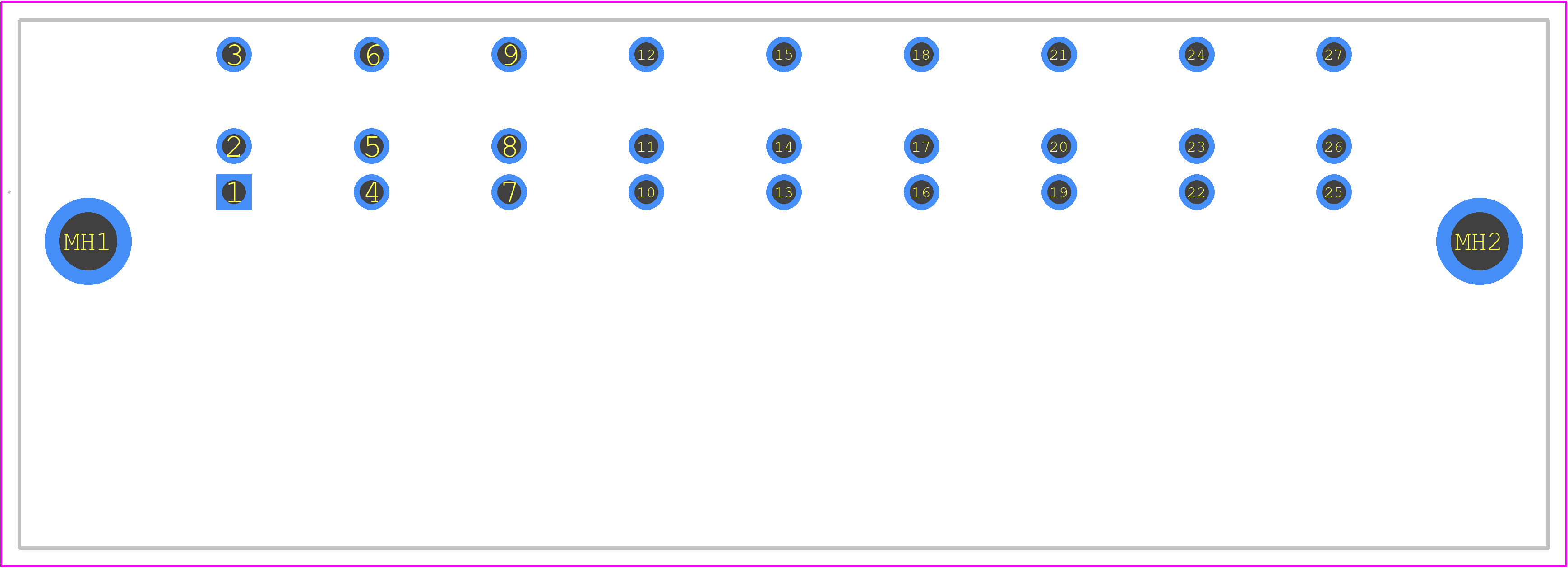

PCB Footprints
1720864 - Phoenix Contact PCB footprint - Other - Other - 1720864
click to zoom
3D Models
1720864 - Phoenix Contact - 3D model - Other - 1720864
click to zoom

1720864 Details

  • Manufacturer Part Number:

    1720864

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    PA, UL 94V0

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    41 A

  • Rated Voltage:

    500 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1720864 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Phoenix Contact application notes.
  • Yes, the 1720864 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10 g (according to IEC 60068-2-6).
  • Yes, the 1720864 connector is designed for outdoor use, with a rating of IP67 (dust and water ingress protection) and UV resistance according to UL 746C.
  • While the datasheet specifies AWG 24-18 wire sizes, Phoenix Contact provides wire size adaptors and accessories that allow for the use of other wire sizes, such as AWG 20-16 or AWG 22-18, with the 1720864 connector.
  • The 1720864 connector is designed to be compatible with other Phoenix Contact connectors, but compatibility with connectors from other manufacturers cannot be guaranteed. It's recommended to verify compatibility before using connectors from different manufacturers.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1720864 Overview

Use the download button to access the 1720864 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17208, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
