The recommended torque value is 0.4 Nm to 0.6 Nm, as specified in the HARTING application notes.
Yes, the 17221252102 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10g acceleration.
Yes, the 17221252102 connector has an IP67 rating, making it suitable for outdoor use and harsh environments, including exposure to dust and water.
The maximum operating temperature range for the 17221252102 connector is -40°C to 125°C, as specified in the datasheet.
Yes, the 17221252102 connector is part of the HARTING Han series, which is designed to be compatible with other Han series connectors, but compatibility should be verified before use.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
17221252102 Overview

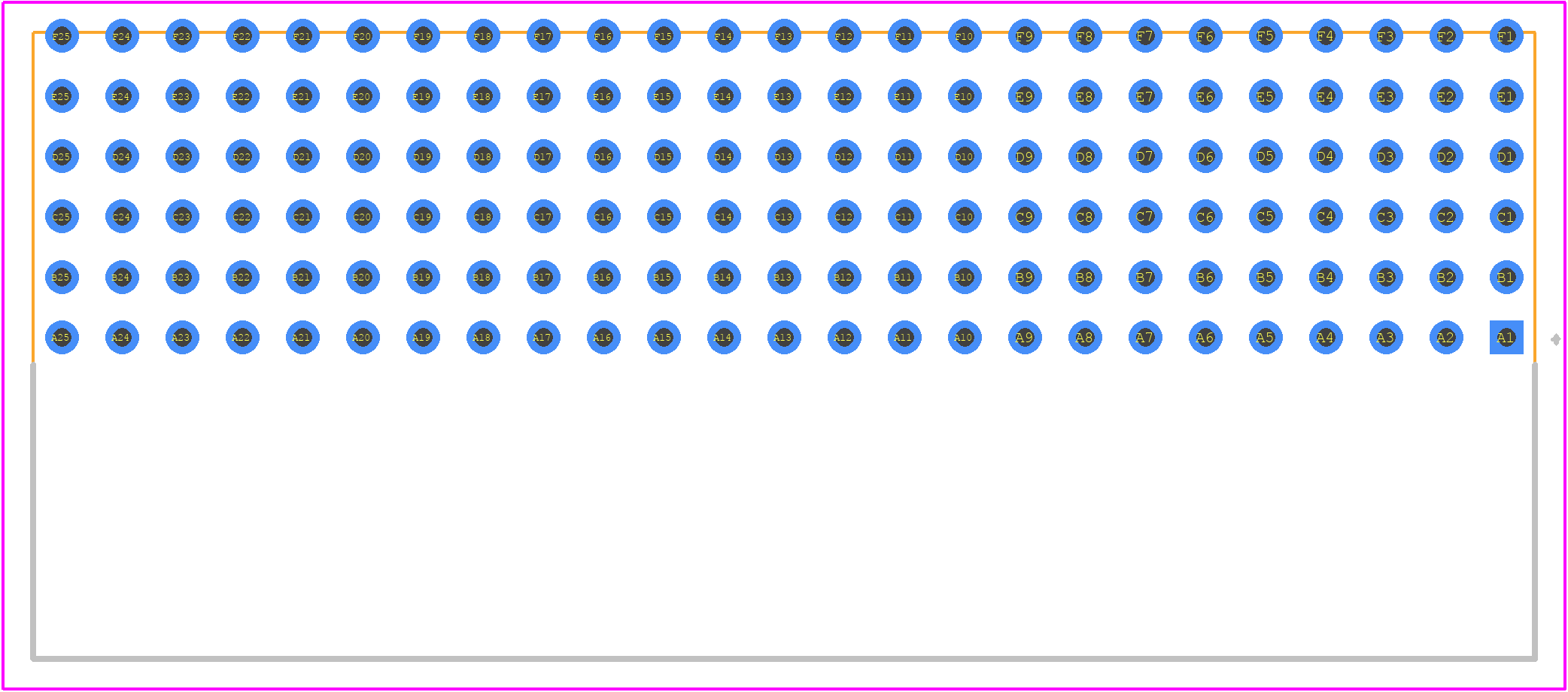

Use the download button to access the 17221252102 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17221,
or try a keyword search, such as Headers and Edge Type Connectors
