1722244 - Phoenix Contact

Description: MC 1,5/10-GF-3,81 P26 THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of rows: 1, number of positions: 10, product range: MC 1,5/..-GF-THR, pitch: 3.81 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern alignment: Standard, locking:

Download 1722244 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1722244 - Phoenix Contact - PCB symbol
click to zoom

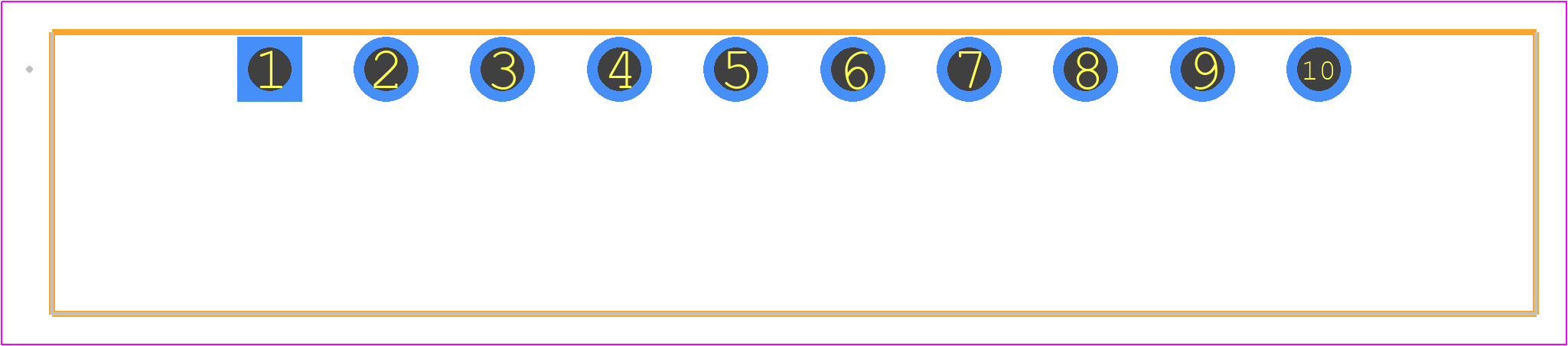

PCB Footprints
1722244 - Phoenix Contact PCB footprint - Other - Other - 1722244
click to zoom
3D Models
1722244 - Phoenix Contact - 3D model - Other - 1722244
click to zoom

1722244 Details

  • Manufacturer Part Number:

    1722244

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.94

  • Additional Feature:

    STANDARD: UL 94V-0, LCP

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1722244 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals on the 1722244 connector is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs) according to Phoenix Contact's application notes.
  • While the 1722244 connector is designed for industrial use, it is not specifically rated for outdoor use. However, it can be used in outdoor applications if properly protected from environmental factors such as moisture, UV, and extreme temperatures using additional enclosures or coatings.
  • While the datasheet specifies wire sizes, Phoenix Contact's connectors are designed to be flexible. However, using wire sizes outside the specified range may affect the connector's performance and reliability. It is recommended to consult with Phoenix Contact's technical support or a qualified engineer to determine the suitability of the connector for your specific application.
  • To ensure proper grounding, make sure to connect the grounding terminal on the 1722244 connector to a suitable grounding point on your device or system. Additionally, follow proper wiring and installation practices to minimize the risk of electrical shock or other safety hazards.
  • Yes, as with any electrical connector, there are safety considerations to be aware of when using the 1722244 connector. Ensure that the connector is used within its specified voltage and current ratings, and follow proper installation and wiring practices to minimize the risk of electrical shock, fire, or other hazards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1722244 Overview

Use the download button to access the 1722244 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17222, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
