172244-1 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

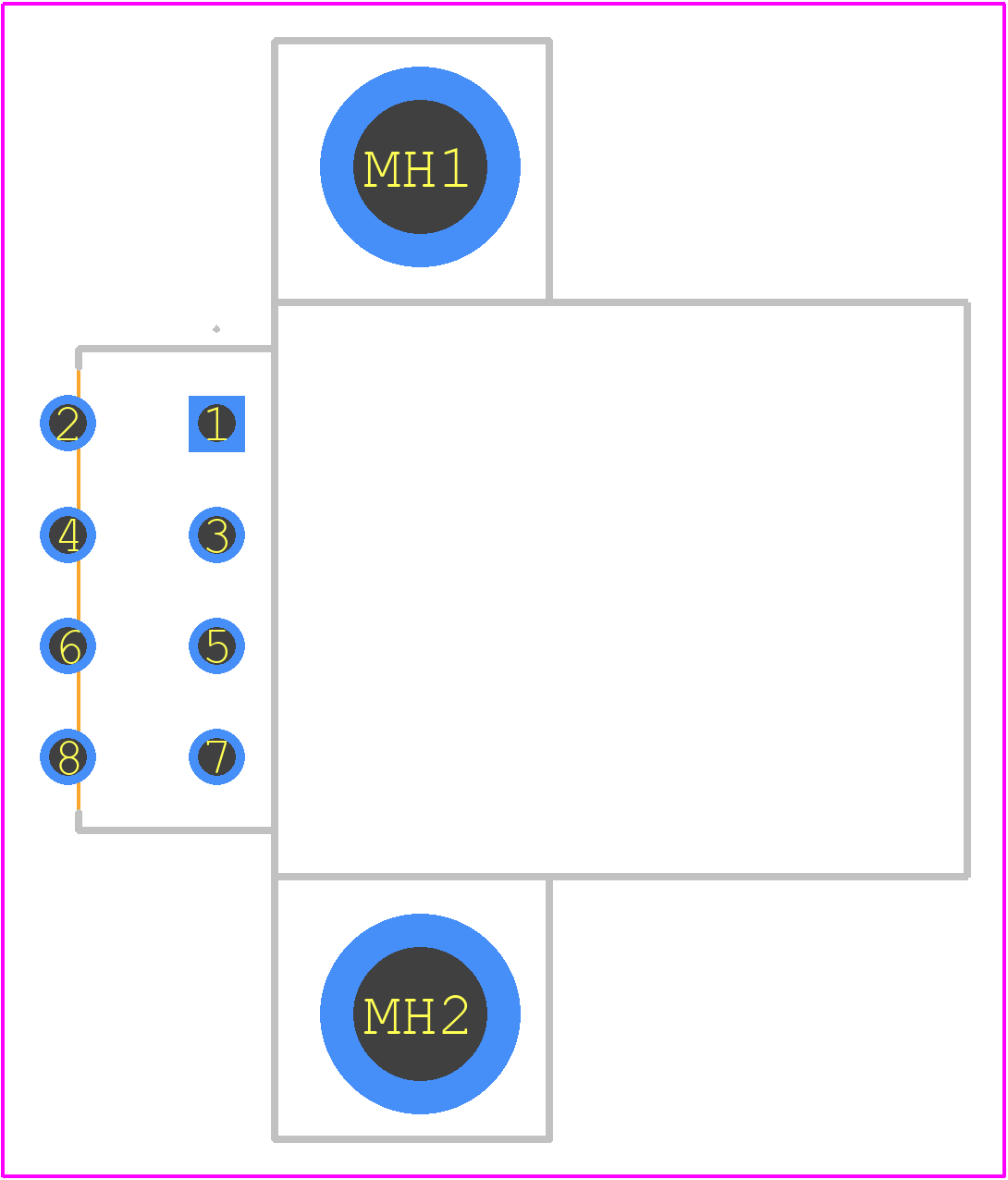

172244-1 - TE Connectivity PCB footprint - Other - Other - 172244-1-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 172244-1
Part Number 172244-1
Manufacturer TE Connectivity
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - 172244-1-2
Released Date May 10, 2023
Last Modified Date May 11, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

172244-1 Details

Manufacturer Part Number:
172244-1
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
TE Connectivity
YTEOL:
3
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYAMIDE66
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
8

172244-1 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 172244-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes with the use of wire adapters or by following TE Connectivity's wire stripping and termination guidelines. However, it's essential to verify the compatibility and performance of the connector with smaller wire sizes before use.
The 172244-1 connector is designed for use in industrial environments and can operate in temperatures ranging from -40°C to 125°C. However, it's essential to follow TE Connectivity's guidelines for environmental considerations and to ensure the connector is properly sealed and protected from moisture and other environmental factors.
Yes, it's essential to follow TE Connectivity's PCB layout guidelines for the 172244-1 connector to ensure proper mating and unmating, as well as to prevent damage to the connector or PCB. The guidelines provide recommendations for PCB hole size, spacing, and layout to ensure reliable connections.
