- Part Number 172260-1
- Manufacturer TE Connectivity
- Pin Count 9
- Part Category Connector
- Package Category Other
- Footprint Name Other - 172260-1-1
- Released Date Jun 9, 2021
- Last Modified Date Jun 8, 2025 12:43 PM UTC
- Pinout / Pin List Click Here (Member Only)
172260-1 Details
-
Manufacturer Part Number:
172260-1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
18 Weeks
-
Manufacturer:
TE Connectivity
-
YTEOL:
7.6
-
Connector Type:
BOARD CONNECTOR
-
Contact Finish Mating:
NOT APPLICABLE
-
Contact Gender:
MALE
172260-1 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
-
Yes, the 172260-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
-
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of wire adapters or by following TE Connectivity's wire stripping and termination guidelines.
-
To ensure reliable connections in high-temperature environments, it's crucial to follow proper termination techniques, use high-temperature-rated wire and insulation, and consider using thermal interface materials or heat sinks to dissipate heat.
-
The 172260-1 connector is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper sealing and protection. TE Connectivity offers various sealing options and accessories to ensure the connector's reliability in such environments.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
172260-1 Overview

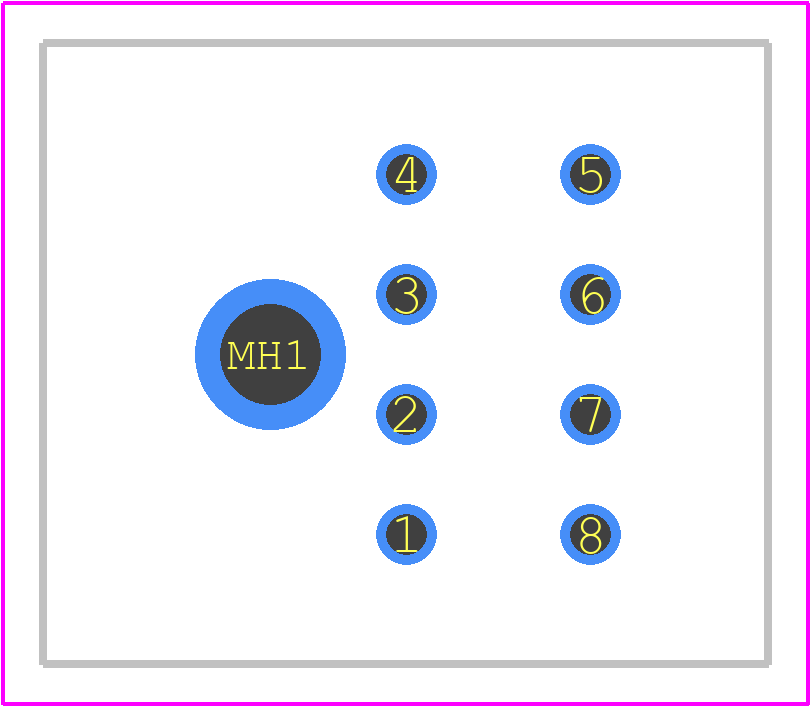

Use the download button to access the 172260-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17226,
or try a keyword search, such as Headers and Edge Type Connectors
