172286-1208 - Molex

Description: Ultra-Fit Vertical Header, 3.50mm Pitch, Single Row, 8 Circuits, with Kinked Pins, Tin (Sn), Glow-Wire Capable, Black

Download 172286-1208 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
172286-1208 - Molex - PCB symbol
click to zoom
PCB Footprints

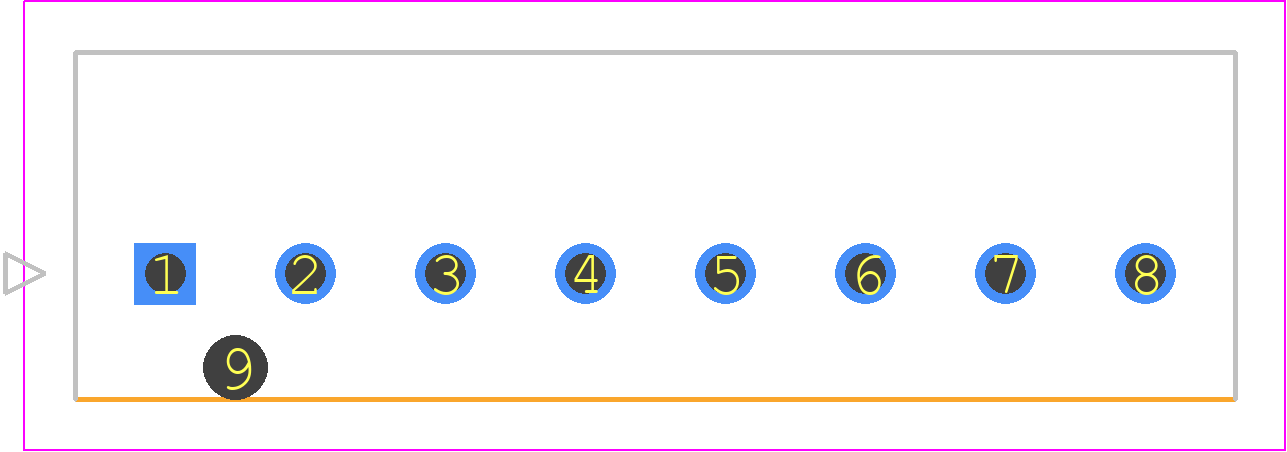

172286-1208 - Molex PCB footprint - Other - Other - 172286-YY08
click to zoom
3D Models
172286-1208 - Molex - 3D model - Other - 172286-YY08
click to zoom

172286-1208 Details

  • Manufacturer Part Number:

    172286-1208

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    31 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Body Breadth:

    0.341 inch

  • Body Depth:

    0.551 inch

  • Body Length:

    1.141 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA, UL

  • Shell Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

172286-1208 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 172286-1208 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 172286-1208 connector is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper protection and sealing. It's essential to follow Molex's guidelines for environmental sealing and protection to ensure reliability.
  • The 172286-1208 connector is designed to accommodate wire sizes between 24 AWG and 18 AWG. Using wire sizes outside this range may compromise the connection reliability or damage the connector.
  • It's not recommended to use the 172286-1208 connector with a different mating connector from another manufacturer, as compatibility and reliability cannot be guaranteed. Molex recommends using their mating connectors to ensure reliable connections and prevent damage.
