172298-1110 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 172298-1110 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
• Is this connector suitable for outdoor or harsh environmental conditions?
  The 172298-1110 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, the connector's materials and plating may not be suitable for extreme environmental conditions, such as high temperatures or corrosive environments.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with caution. However, using smaller or larger wire sizes may affect the connector's performance, reliability, and durability. It's essential to consult with Molex or a qualified engineer to determine the suitability of using alternative wire sizes.

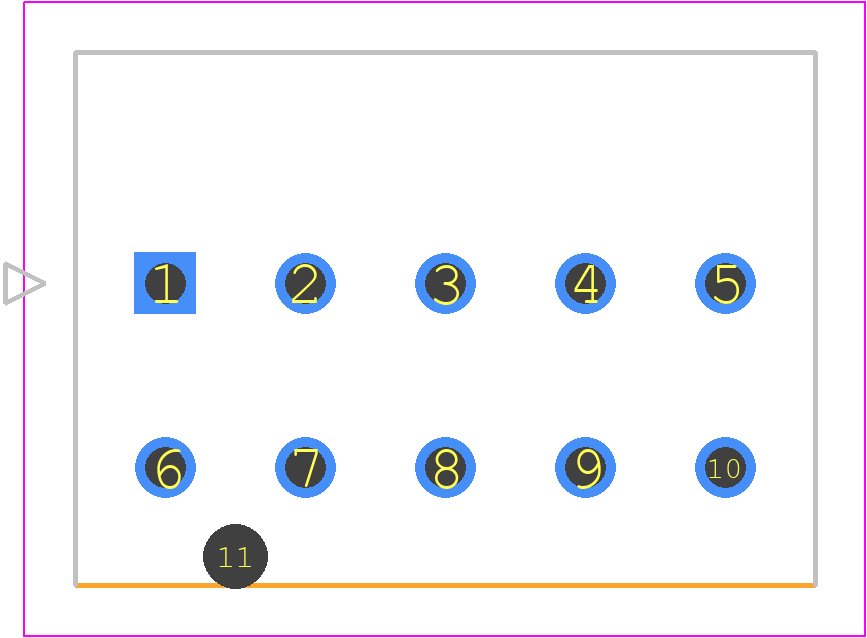

• Are there any specific PCB layout or design considerations I should be aware of?
  Yes, when designing the PCB layout, ensure that the connector's footprint and pinout are accurately represented. Also, consider the connector's height and width to ensure proper clearance and avoid interference with other components. Additionally, follow Molex's recommended PCB layout guidelines and consult with a qualified engineer if you're unsure about any design aspects.
