Part Image

172299-1106 - Molex

Description: Ultra-Fit Vertical Header, 3.50mm Pitch, Dual Row, 6 Circuits, with Solder Clips, Glow-Wire Capable

Download 172299-1106 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
172299-1106 - Molex - PCB symbol
click to zoom
PCB Footprints

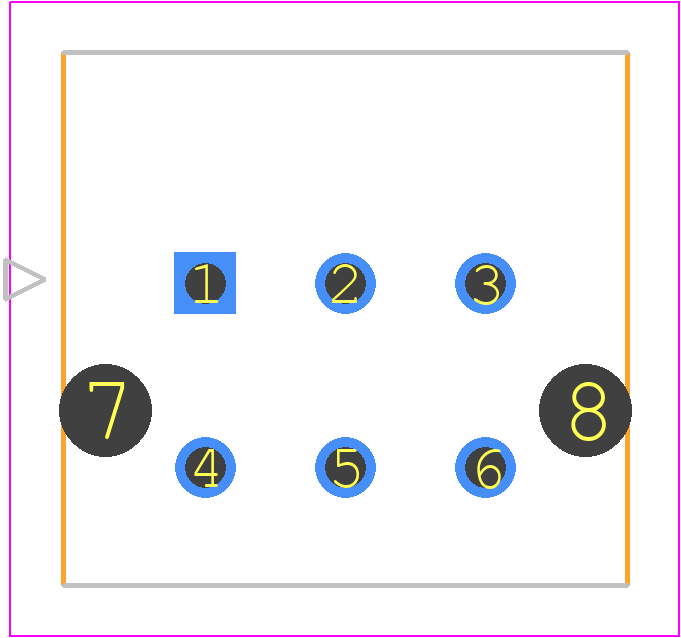

172299-1106 - Molex PCB footprint - Other - Other - 172299-YY06
click to zoom
3D Models
172299-1106 - Molex - 3D model - Other - 172299-YY06
click to zoom

172299-1106 Details

  • Manufacturer Part Number:

    172299-1106

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mexico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    31 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 12A

  • Body Breadth:

    0.524 inch

  • Body Depth:

    0.551 inch

  • Body Length:

    0.555 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

172299-1106 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 172299-1106 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 172299-1106 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor applications, it's not recommended for harsh environmental conditions, such as direct exposure to water, high humidity, or extreme temperatures.
  • The 172299-1106 connector is designed to accommodate wire sizes between 24 AWG and 16 AWG. Using wire sizes outside this range may compromise the connection reliability or damage the connector.
  • It's not recommended to use the 172299-1106 connector with a mating connector from another manufacturer, as compatibility and reliability cannot be guaranteed. Molex connectors are designed to mate with other Molex connectors, and using a different manufacturer's connector may lead to connection issues or damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

172299-1106 Overview

Use the download button to access the 172299-1106 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17229, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
