172299-2110 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 172299-2110 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
• Is this connector suitable for outdoor or harsh environment applications?
  The 172299-2110 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, the connector's materials and construction can withstand moderate exposure to environmental factors, but it's not designed for extreme outdoor or harsh environment applications.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with caution. However, using smaller or larger wires may affect the connector's performance, reliability, and durability. It's essential to consult with Molex or a qualified engineer to determine the feasibility of using alternative wire sizes.

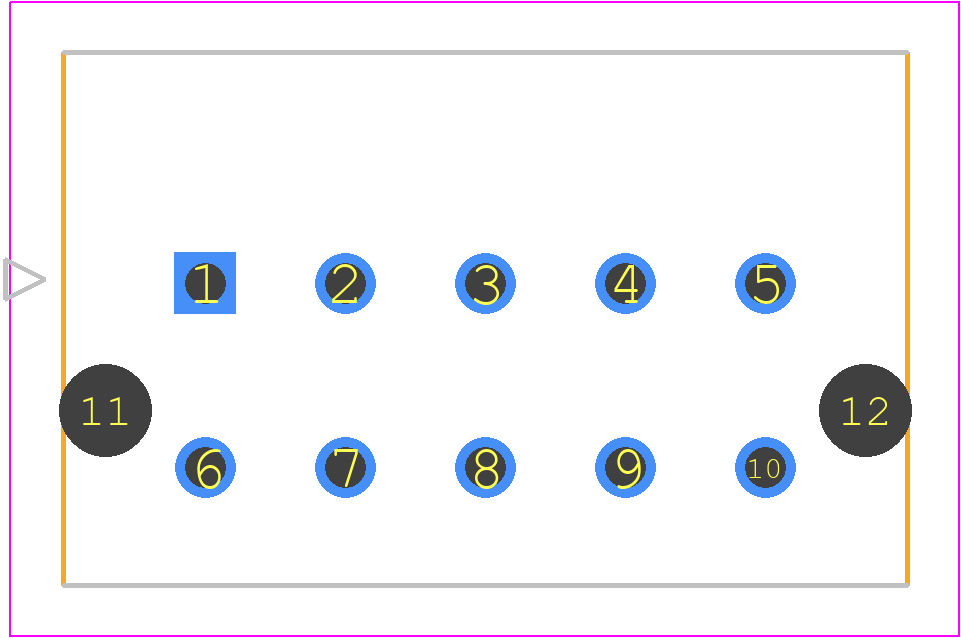

• Are there any specific PCB layout or design considerations I should be aware of?
  Yes, to ensure reliable operation and prevent damage to the connector, it's essential to follow proper PCB layout and design guidelines. These include maintaining a minimum clearance of 1.5 mm around the connector, using a solder mask to prevent solder bridging, and ensuring the PCB material can withstand the connector's operating temperatures.
