1723014 - Phoenix Contact

Description: MK3DS 3/ 2-5,08 - Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm<sup>2</sup>, number of potentials: 6, number of rows: 3, number of positions per row: 2, product range: MK3DS 3, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potent

Download 1723014 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1723014 - Phoenix Contact - PCB symbol
click to zoom

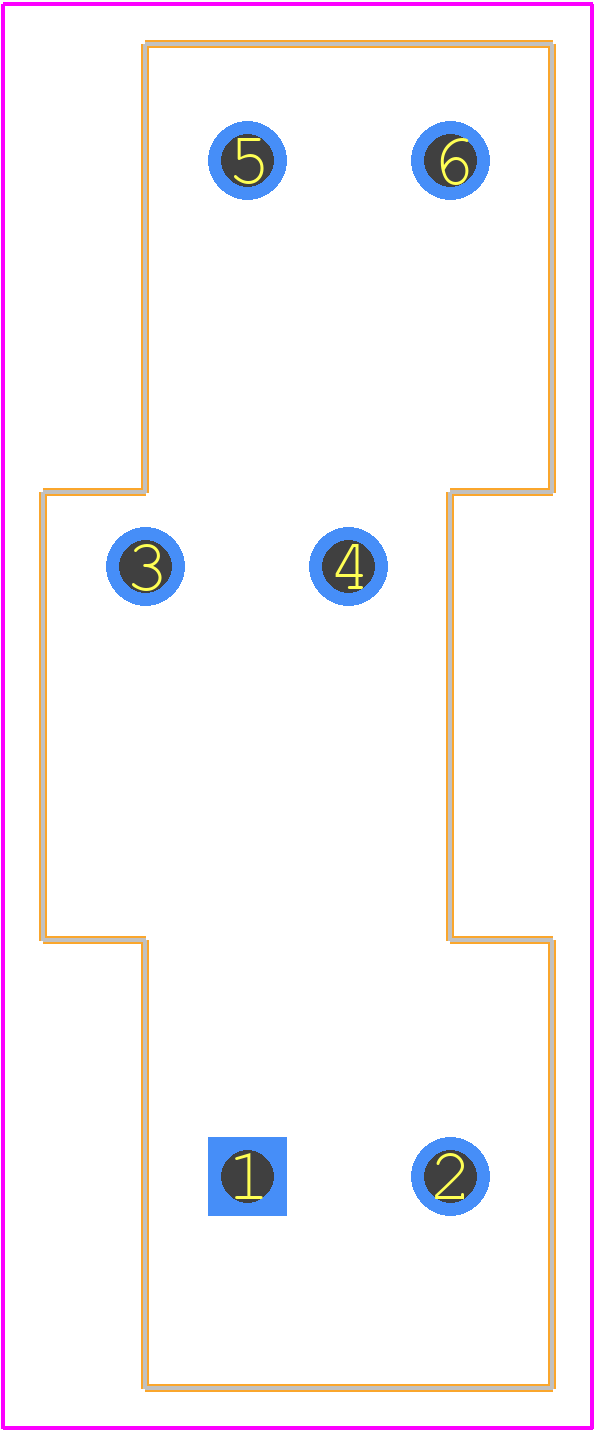

PCB Footprints
1723014 - Phoenix Contact PCB footprint - Other - Other - 1723014-1
click to zoom
3D Models
1723014 - Phoenix Contact - 3D model - Other - 1723014-1
click to zoom

1723014 Details

  • Manufacturer Part Number:

    1723014

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6

  • Additional Feature:

    POLYAMIDE, 94V-2

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    3

  • Number of Rows:

    3

  • Number of Ways:

    2

  • Rated Current:

    24 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL; CSA

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    4 mm2

  • Wire Gauge:

    12 AWG

1723014 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and material to ensure the correct torque value.
  • Yes, the 1723014 connector is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to the PCB to maintain the connector's integrity.
  • The 1723014 connector is rated for operating temperatures between -40°C to 125°C and can withstand humidities up to 95% RH. However, it's essential to consider the specific environmental conditions and potential derating factors.
  • The 1723014 connector is rated for currents up to 12 A per contact. However, it's crucial to consider the PCB design, wire gauge, and overall system architecture to ensure safe and reliable operation.
  • Yes, it's essential to follow the recommended PCB layout guidelines provided by Phoenix Contact, including keeping the PCB material and thickness in mind, to ensure proper connector operation and prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1723014 Overview

Use the download button to access the 1723014 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17230, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
