1723027 - Phoenix Contact

Description: MK3DS 3/ 3-5,08 - Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm<sup>2</sup>, number of potentials: 9, number of rows: 3, number of positions per row: 3, product range: MK3DS 3, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potent

Download 1723027 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1723027 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

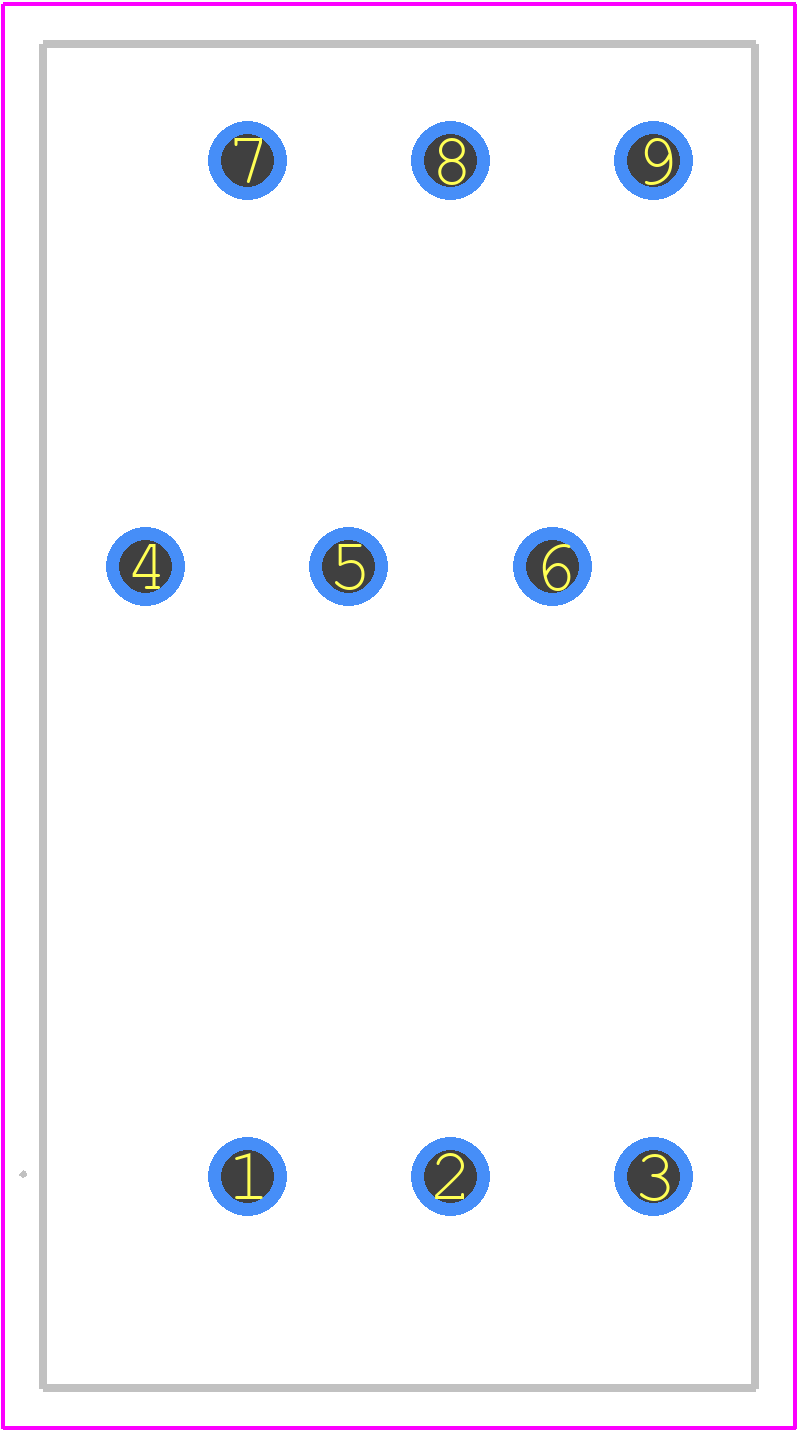

1723027 - Phoenix Contact PCB footprint - Other - Other - 1723027-1
click to zoom
3D Models
1723027 - Phoenix Contact - 3D model - Other - 1723027-1
click to zoom

1723027 Details

  • Manufacturer Part Number:

    1723027

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    17.5 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

1723027 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 1723027 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing for specific applications.
  • The 1723027 connector has a IP20 rating, which means it's protected against solid objects > 12 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or applying additional sealing measures.
  • While the datasheet specifies AWG 20-24, the connector can accommodate other wire sizes with some adjustments. However, it's essential to verify the wire size and insulation diameter to ensure proper connection and prevent damage.
  • The 1723027 connector is rated for operation in temperatures ranging from -40°C to 105°C. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
