17230551101 - HARTING

Description: HM Female Type C, unshielded, PL1

Download 17230551101 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
17230551101 - HARTING - PCB symbol
click to zoom

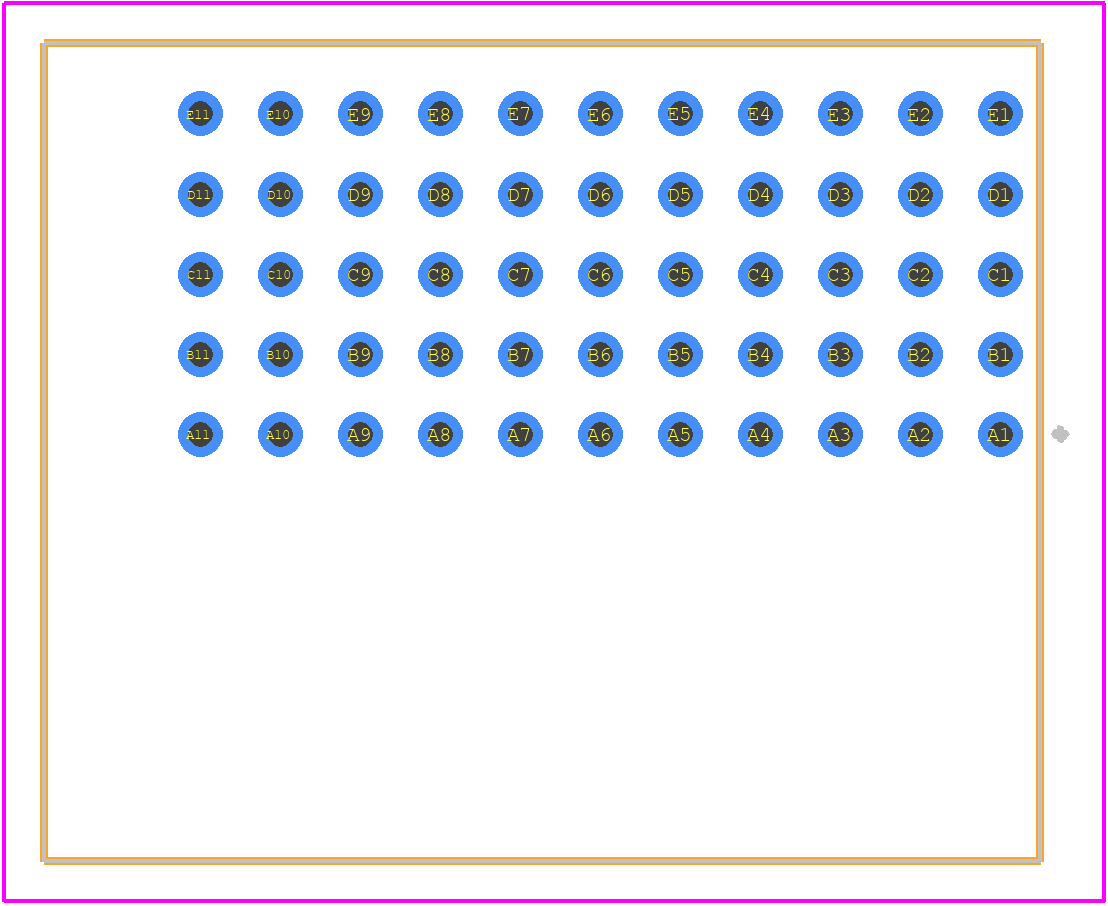

PCB Footprints
17230551101 - HARTING PCB footprint - Other - Other - 17230551101-1
click to zoom
3D Models
17230551101 - HARTING - 3D model - Other - 17230551101-1
click to zoom

17230551101 Details

  • Manufacturer Part Number:

    17230551101

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Czechia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: IEC 61076-4-101

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    5

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    55

  • UL Flammability Code:

    94V-0

17230551101 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 17230551101 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 17230551101 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g (according to IEC 60068-2-6).
  • Yes, the 17230551101 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to +125°C and humidity resistance up to 95% RH.
  • The 17230551101 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
  • The 17230551101 connector is compatible with other HARTING connectors of the same series, but it's recommended to check the specific compatibility with other connectors before use.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

17230551101 Overview

Use the download button to access the 17230551101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17230, or try a keyword search, such as Headers and Edge Type Connectors
