- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 17230552101
- Part Number 17230552101
- Manufacturer HARTING
- Pin Count 55
- Part Category Connector
- Package Category Other

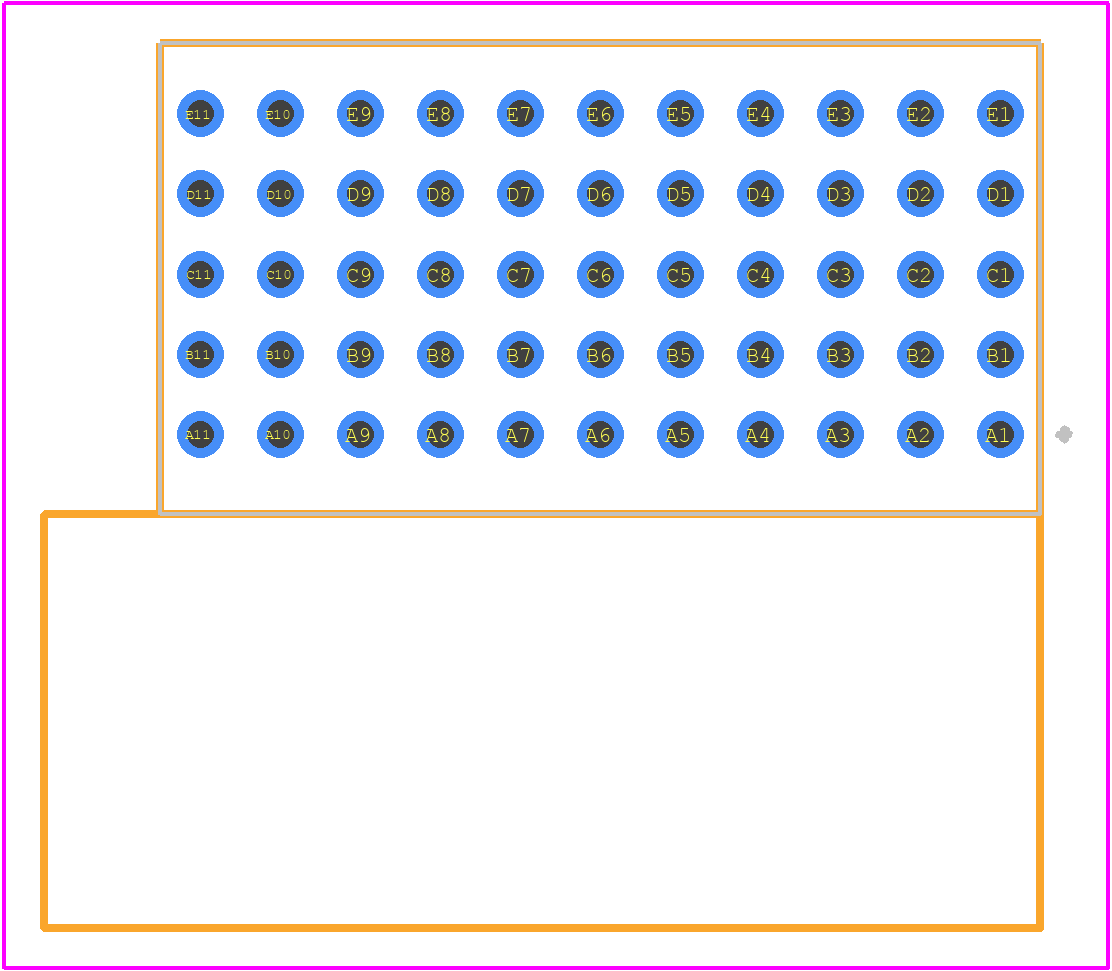

- Footprint Name Other - 17230552101-2
- Released Date Dec 3, 2018
- Last Modified Date May 18, 2023 8:38 AM UTC
- Pinout / Pin List Click Here (Member Only)
17230552101 Details
-
Manufacturer Part Number:
17230552101
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
HARTING Technology Group
-
YTEOL:
8
-
Additional Feature:
STANDARD: IEC 61076-4-101
-
Connector Type:
BOARD CONNECTOR
17230552101 Frequently Asked Questions (FAQs)
-
The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
-
Yes, the 17230552101 connector is designed to withstand vibrations up to 10g according to IEC 61373, making it suitable for use in high-vibration environments.
-
Yes, the connector is designed for automated assembly and can withstand reflow soldering temperatures up to 260°C for 30 seconds.
-
The connector is rated for operation in temperatures ranging from -40°C to 125°C.
-
The connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
17230552101 Overview
Use the download button to access the 17230552101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 17230,
or try a keyword search, such as Headers and Edge Type Connectors
